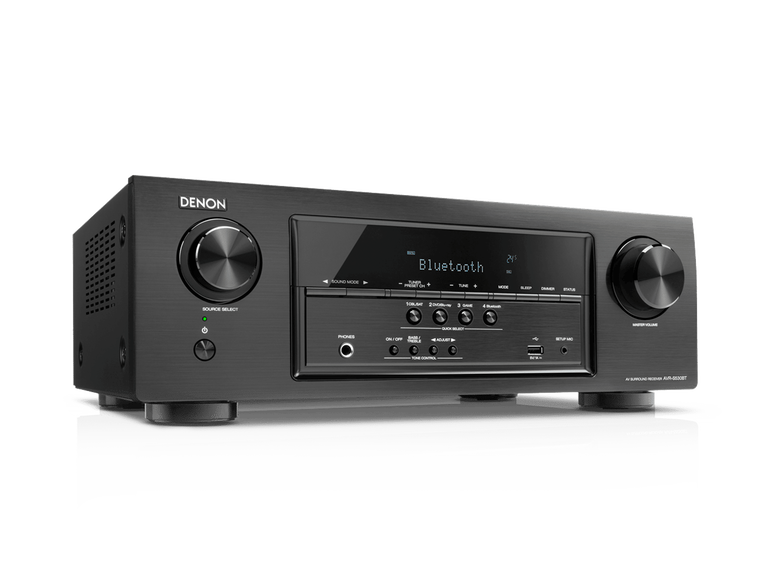

AVR-S530BT

Name: AVR-S530BT
Brand: Denon
SKU: AVRS530BT-VAR

5.2 Channel Full 4K Ultra HD AV Receiver

The Denon AVR-S530BT is a 5.2-channel AV receiver with Bluetooth connectivity, offering powerful amplification, support for high-resolution audio formats, and HDMI connectivity.

Color

Black

Select Quality

AVR-S530BT

Details & Specifications

Multichannel Surround

DTS HD Master / DTS:X Yes / No
DTS Neo:X / DTS Neural:X No / No
Dolby TrueHD / Dolby Atmos Yes / No
Dolby ProLogic Ilz / Dolby Surround No / No
Auro 3D No
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 5.1

Sound Enhancements

Mono Block Power Amp Construction No
Discrete Power Amplifier Yes
D.D.S.C. HD Digital No
Pure Direct No
Gold Plated RCA Terminals No
Clock Jitter Reducer No
Alpha Processing No
Denon Link HD No
Audyssey No
Audyssey Dynamic EQ / Dynamic Volume No / No
Audyssey LFC No
Compressed Audio Restorer Yes

Network

Media Server No
HEOS Wireless Multi-Room Technology No
Lossy Formats: MP3 / WMA / AAC No / No / No
Lossless Formats: FLAC / ALAC / WAV No / No / No
Lossless formats: FLAC HD 192/24 / ALAC 192/24 / WAV 192/24 No / No / No
DSD Audio Streaming No
FLAC HD 192/24 No
WAV 192/24 No
ALAC 192/24 No
Gapless playback No
Photo Streaming (JPEG) No
Internet Radio No
Spotify* No
Pandora No
SiriusXM No
Other Streaming Services No
HEOS App Control No
Compatible with Remote APP for Smart Phones Denon 500 Series Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports No
Wi-Fi No
Bluetooth Yes

HDMI

HDMI Inputs: Back / Front 5 / No
HDCP 2.2 support Yes
HDMI Outputs: Main / Zone 1 / No
Video Conversion Analog -> HDMI No
Analog to HDMI Scaling No
HDMI to HDMI Scaling No
GUI Overlay on HDMI Yes
HDMI: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
Enhanced ARC No
HLG / Dolby Vision No
3D Signal Pass-through Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / No / No
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction No / No
CEC Yes
DSD Audio Capability No
Audio Return Channel Yes
Auto LipSync No

Multi-room CI

Multi-Room Zones No
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog No / No / No / No
Zone Audio Output: Speaker / Preout No / No
Zone HDMI Output from HDMI Source No
IP Control / RS232 Control / Web Control / App Control No / No / No / No
Remote In / Out No / No
DC Trigger Output No
HDMI Diagnostics No

Others

Auto Speaker Setup by Microphone yes
FL Display 1 line
Graphic User Interface - GUI GUI
ISF Certification No
GUI Languages 3
Setup Assistant Yes
Quick Select Plus / Quick Select No / Yes
Firmware Update by: Network / USB No / Yes
Variable Cross Over Yes
Optimized Bass Redirection No
Bass Sync No
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Inputs Outputs

Composite In / Out 2 / 1
Component In / Out No / No
HDMI In / Out 5 / 1
Multi-room Video Out: Video / HDMI No / No
Analog In/out 2 / No
Phono (MM) In No
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital No / No
Multichannel Pre-out Yes (0.2) / No
Subwoofer Out 2
7.1 Multichannel Input No
Speaker Terminal: Gold Plated Screw / Regular Screw No / No
Number of Speaker Terminals 5
Speaker A / B No
Bi-amp Drive No
Multi-Room Speaker Terminal No
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

Specifications

Number of Power Amps 5
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 70W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) No
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 90W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 140W

General

Metal Front Panel No
System Remote Control RC-1216
Pre-programmed / Learnable / LCD Display No / No / No
Power Consumption in W 310
Power Consumption No-Sound (ECO On / Off) in W 26W / 35W
Standby Consumption in W 0.1
CEC Standby Consumption in W 2.8
Maximum Dimensions (W x D x H) in inches 17.1 x 12.6 x 6
Weight in LBS 16.6
