Archived

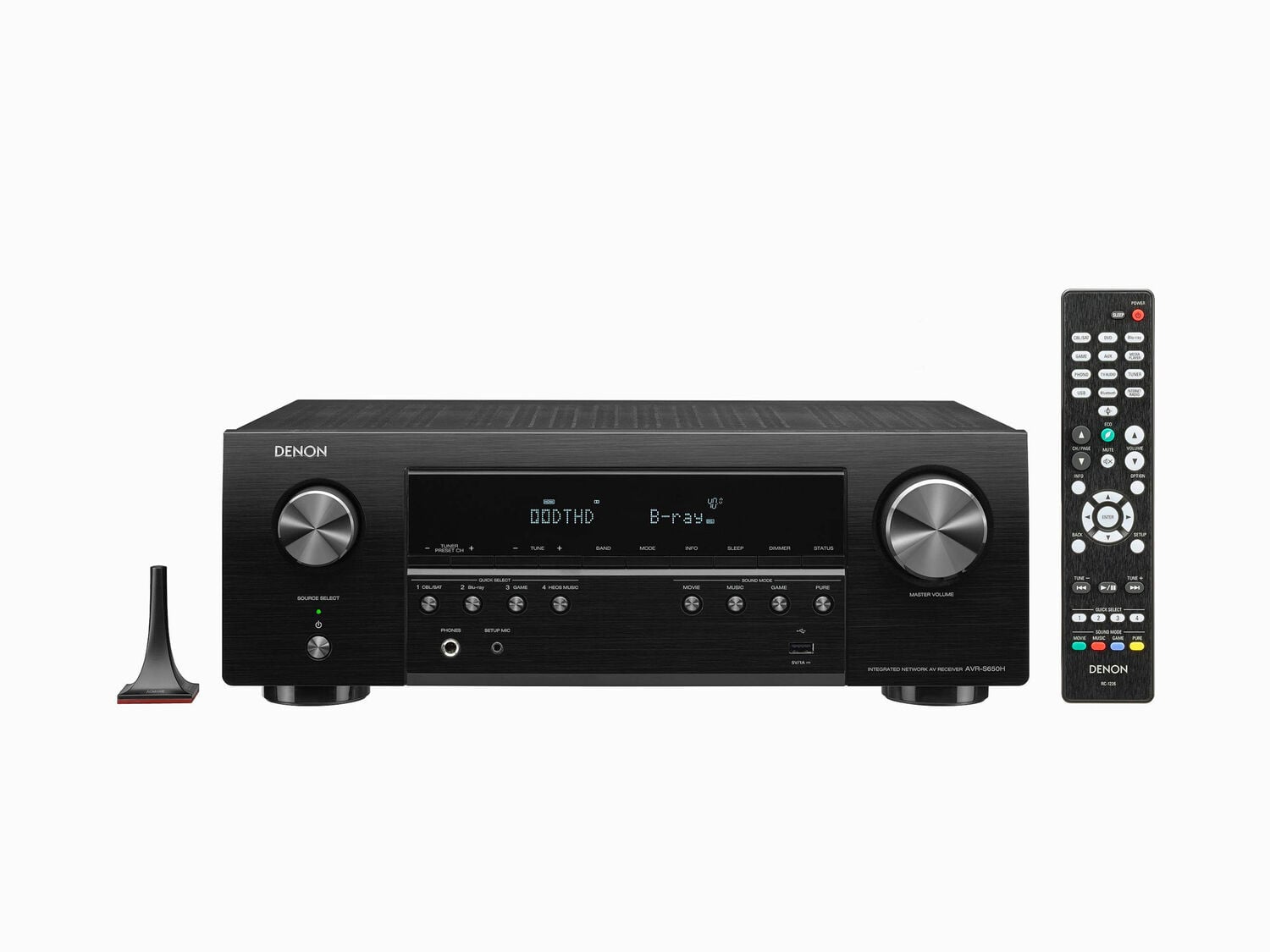

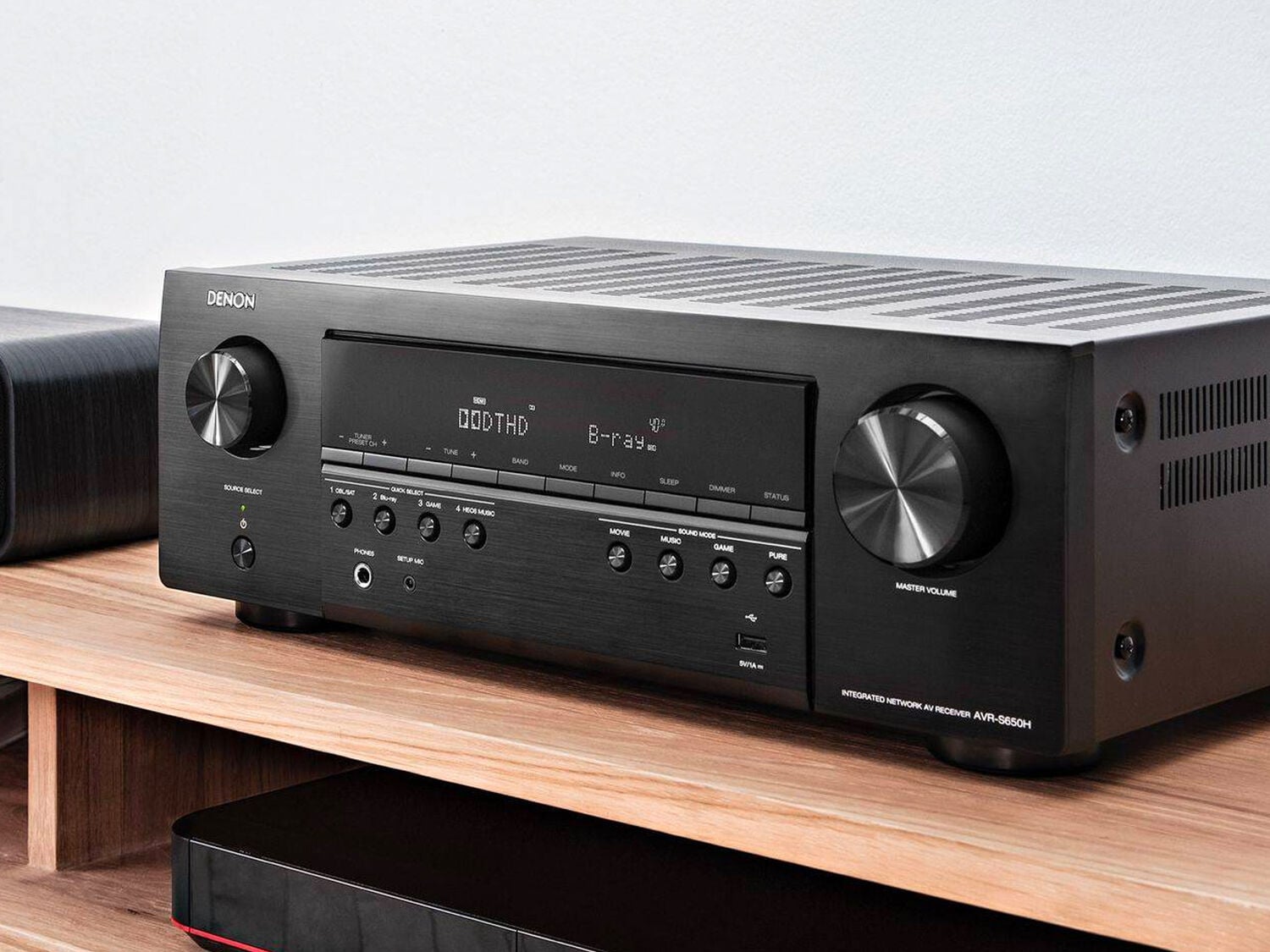

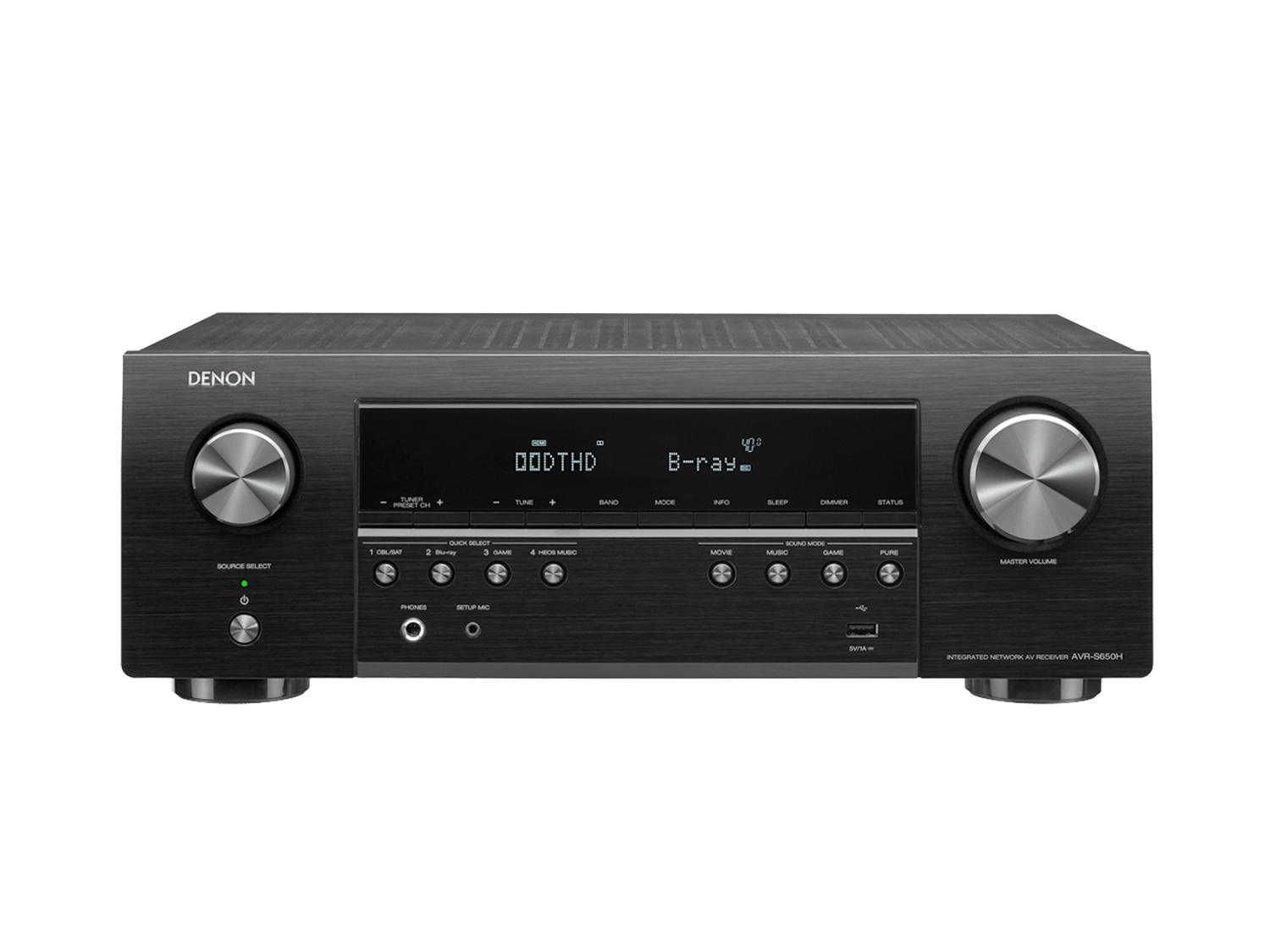

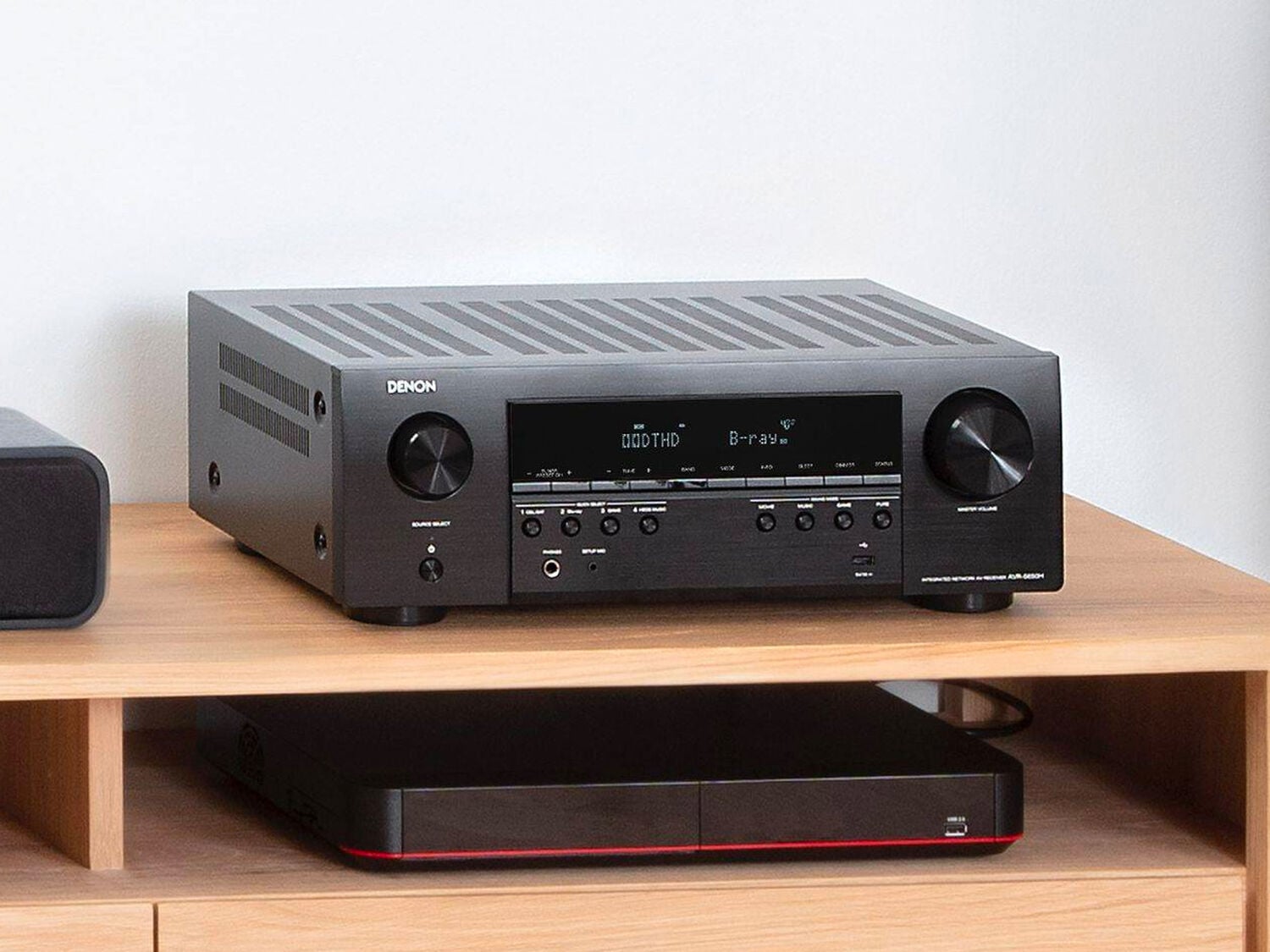

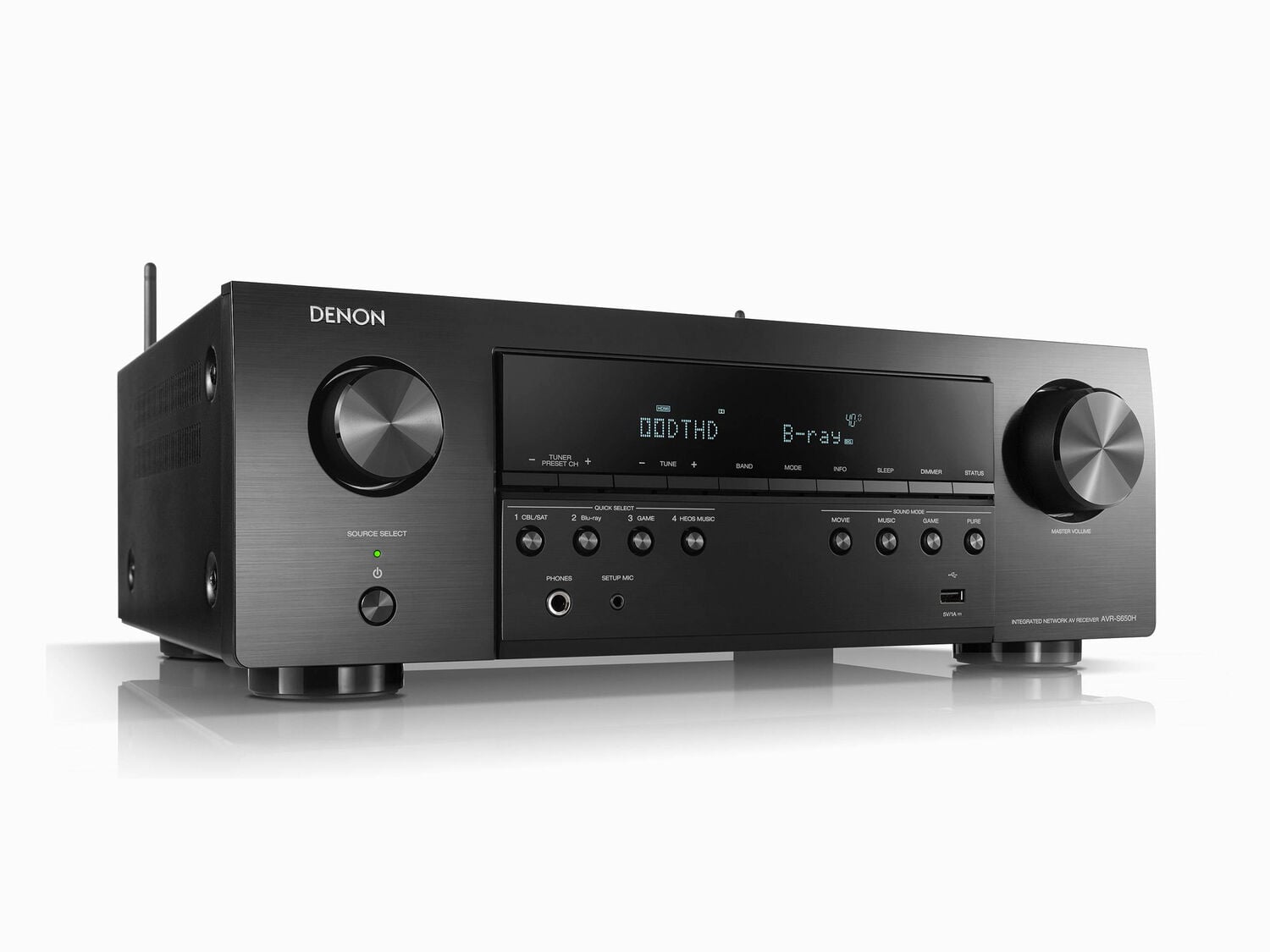

AVR-S650H

5.2ch AV Receiver with Voice Control

Home theater receiver with Denon Link, Dolby Digital EX, DTS-ES, and Dolby Pro Logic IIx

120 watts per channel
Dolby Digital EX
Dolby Pro Logic II/x
DTS decoding
Denon Link 3
ES Matrix 6.1

Select Quality

Color

Black

Ready for an upgrade?

AVR-S650H

Details & Specifications

Multichannel Surround

Sound Enhancements

Network

Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes (update)
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay / Airplay2 Audio Streaming Yes / Yes
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes (update)
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay / Airplay2 Audio Streaming Yes / Yes
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI Inputs: Back / Front 5 / No
HDCP 2.2 support Yes (HDCP 2.3)
HDMI Outputs: Main / Zone 1 / No
GUI Overlay on HDMI Yes
HDMI: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HDR / HLG / Dolby Vision Yes (HDR10) / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
3D Signal Pass-through Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / No / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
Audio Return Channel Yes
Auto LipSync Yes
HDMI Inputs: Back / Front 5 / No
HDCP 2.2 support Yes (HDCP 2.3)
HDMI Outputs: Main / Zone 1 / No
GUI Overlay on HDMI Yes
HDMI: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HDR / HLG / Dolby Vision Yes (HDR10) / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
3D Signal Pass-through Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / No / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
Audio Return Channel Yes
Auto LipSync Yes

Multi-room CI

Others

Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 3
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes
Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 3
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

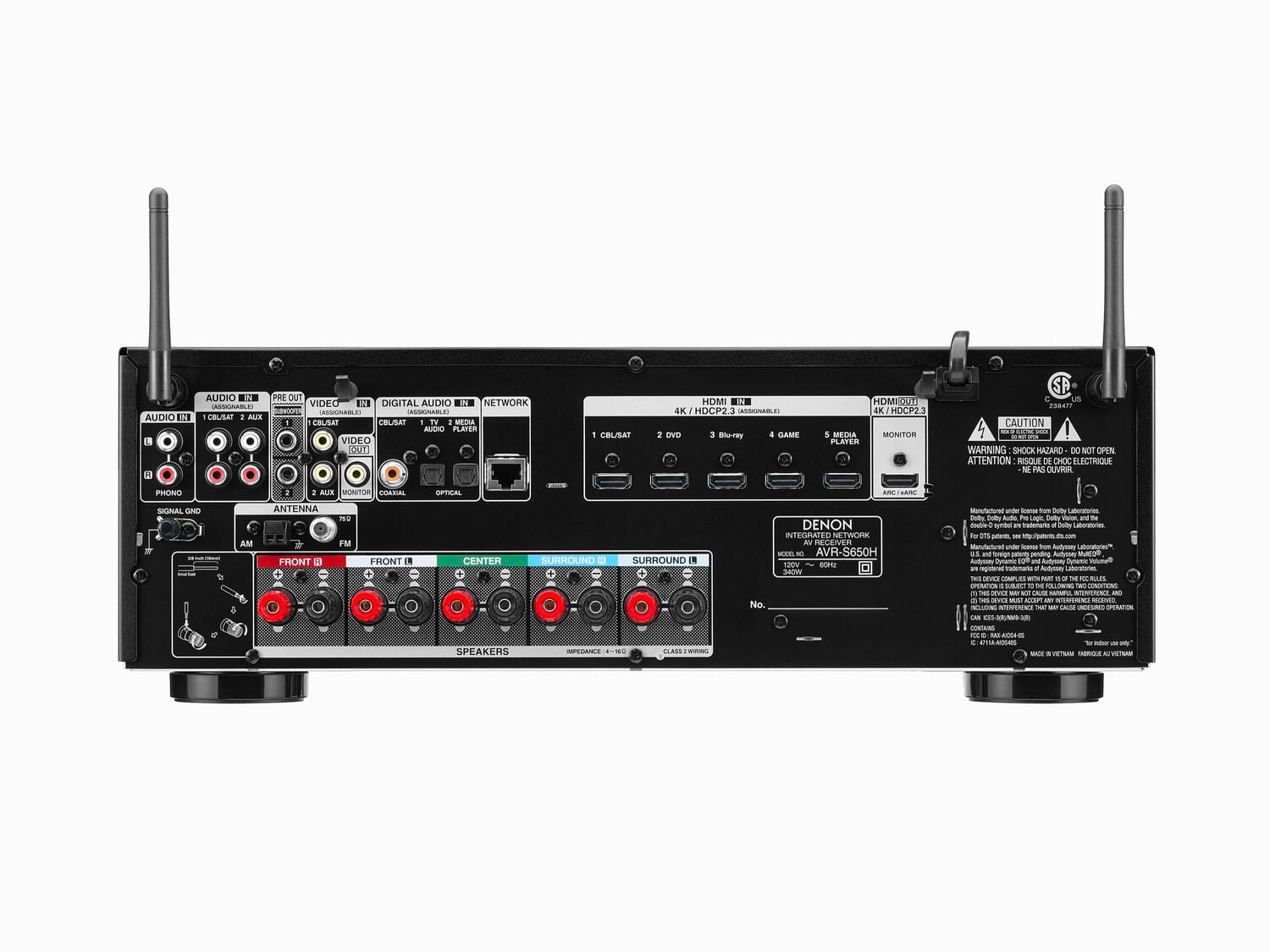

Inputs Outputs

Composite In / Out 2 / 1
HDMI In / Out 5 / 1
Analog In/out 2 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multichannel Pre-out Yes (0.2) / No
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 5
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
Composite In / Out 2 / 1
HDMI In / Out 5 / 1
Analog In/out 2 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multichannel Pre-out Yes (0.2) / No
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 5
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

Specifications

General

System Remote Control RC-1226
Power Consumption in W 340
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.6 x 17.1 x 9.1 (in)
Weight in LBS 17.2
Weight in LBS (Packaging) 21.4
Power Supply AC 120 V, 60 Hz
Speaker impedance 4 - 16Ω/ohms
Input sensitivity 200 mV
Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
S/N Ratio 98 dB (IHF-A weighted, Direct mode)
FM section (Tuning frequency range) 87.5 - 107.9 MHz
AM section (Tuning frequency range) 520 kHz – 1710 kHz
System Remote Control RC-1226
Power Consumption in W 340
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.6 x 17.1 x 9.1 (in)
Weight in LBS 17.2
Weight in LBS (Packaging) 21.4
Power Supply AC 120 V, 60 Hz
Speaker impedance 4 - 16Ω/ohms
Input sensitivity 200 mV
Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
S/N Ratio 98 dB (IHF-A weighted, Direct mode)
FM section (Tuning frequency range) 87.5 - 107.9 MHz
AM section (Tuning frequency range) 520 kHz – 1710 kHz
