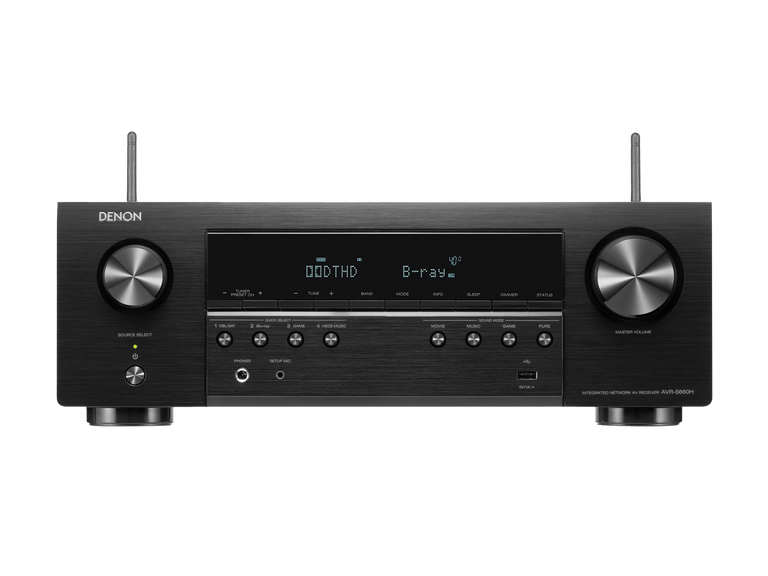

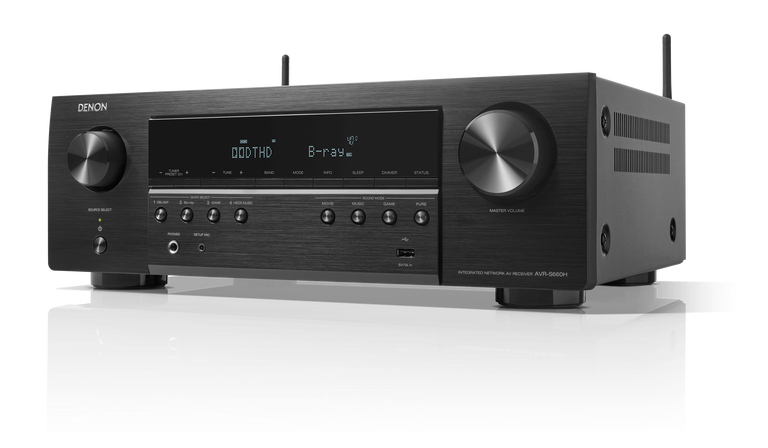

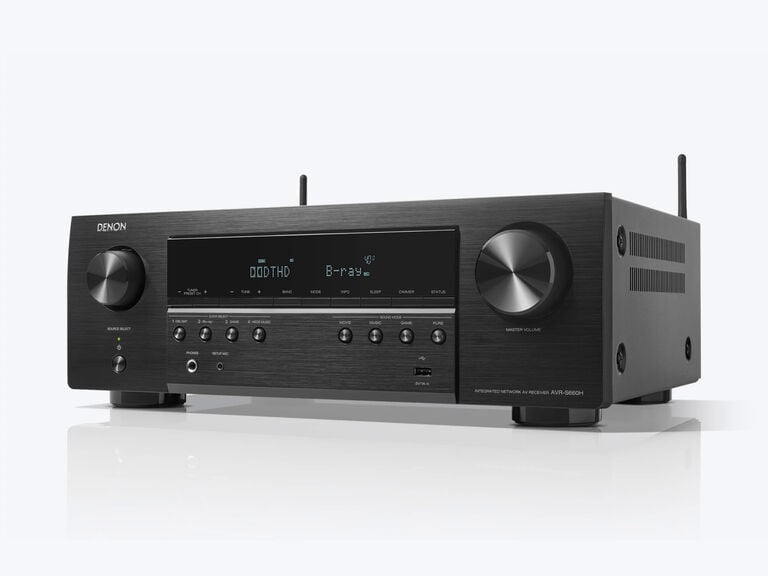

AVR-S660H

5.2 Ch. 75W 8K AV Receiver with HEOS® Built-in

Designed for 4K or 8K setups, the AVR-S660H delivers superior 3D audio home theater/gaming experiences and supports the latest HDMI specifications.

5.2 channels
75 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
6 HDMI inputs

Select Quality

Color

Black

Ready for an upgrade?

AVR-X8500HA, , dynamic

13.2 Ch. 150W 8K AV Receiver with HEOS® Built-in

$4,599.00

Archived

AVR-X3700H, , dynamic

9.2 Ch. 105W 8K AV Receiver with HEOS® Built-in

Sale

AVR-S660H, , dynamic

5.2 Ch. 75W 8K AV Receiver with HEOS® Built-in

$379.00 ~~Price reduced from $499.00~~

SHOP ALL AV RECEIVERS

AVR-S660H

Details & Specifications

Specifications

General

Speaker impedance 4-16Ω/ohms
Input sensitivity 200 mV
Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
S/N Ratio 98dB (IHF-A weighted, Direct Mode)
FM section (Tuning frequency range) 87.5 – 107.9 MHz
AM section (Tuning frequency range) 520 - 1710 kHz
Power Supply AC 230 V, 50 Hz
Power Consumption in W 340
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Weight in kg 7.8
3.5mm audio line-in connection Yes

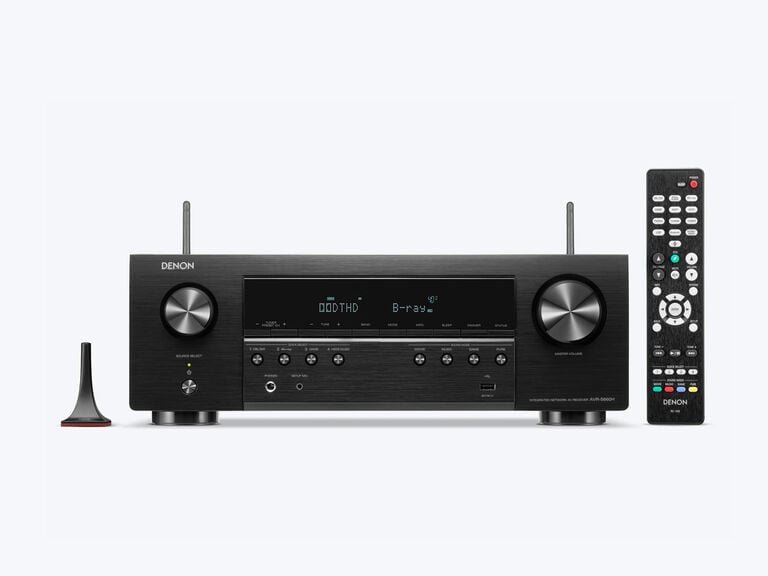

System Remote Control RC-1243
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 2.0
Available colours: Black / Premium Silver Yes / No
Maximum Dimensions w/ Antenna 434 x 339 x 215 mm
w/o Antenna 434 × 339 × 151 mm
Carton Maximum Dimensions (W x D x H) 523 x 435 x 232 mm
Carton Weight (inc. product) in kg 9.7

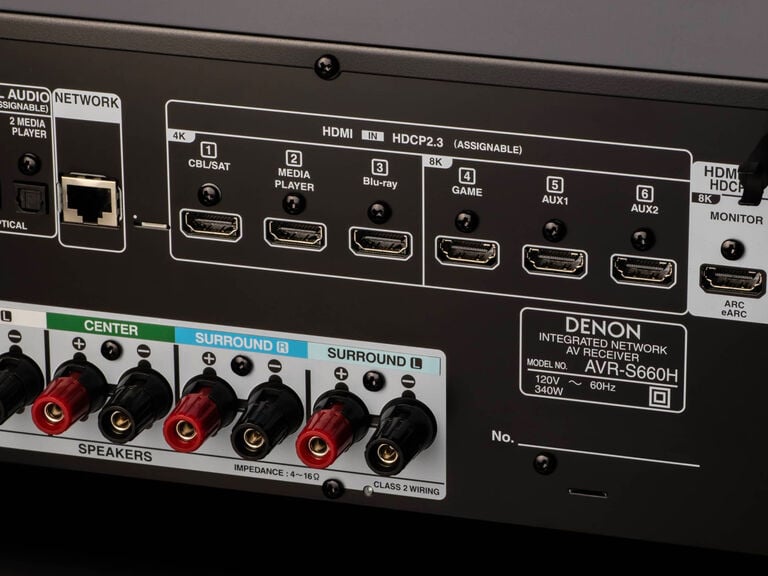

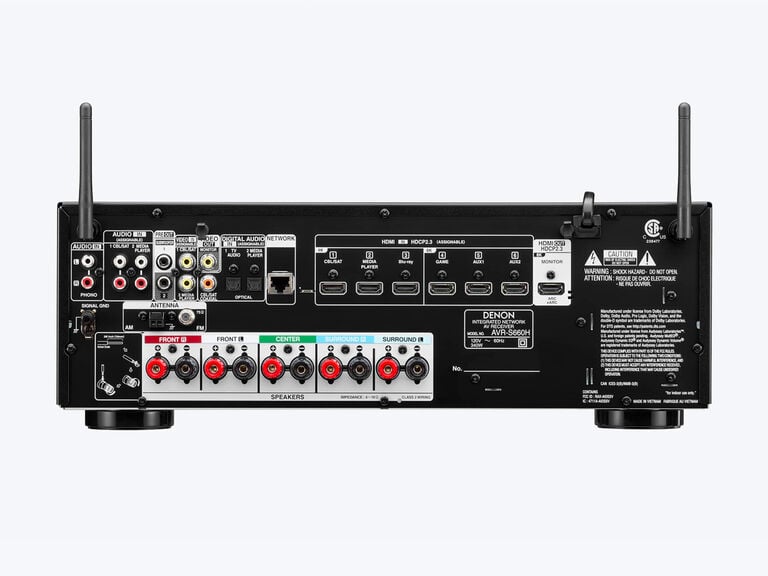

Inputs Outputs

HDMI In / Out 6 / 1
Composite In / Out 2 / 1
Phono (MM) In Yes
Analogue In/out 2 / -
Digital Optical In/Out 2 / No
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
Pre-out / Main-in 0.2 ch / no
Headphone output Yes
Ethernet Yes
AM/FM Tuner Yes
Digital In: Optical / Coaxial 2 / 0
Multichannel Preout o (0.2)
Subwoofer Out 2
Number of Speaker Terminals 5
USB Audio / Made for iPod / Made for iPhone o / AirPlay / AirPlay
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
FM Tuner with RDS Yes

Multichannel Surround

Sound Enhancements

Network

DSD Audio Streaming up to DSD5.6
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
Internet Radio TuneIn
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
AirPlay 2 Yes
Roon Tested Yes
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora* Yes / No
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth Re-transmit for Bluetooth headphones Yes

HDMI

Others

Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 9
Voice Control - Works with Amazon Alexa Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Setup Assistent Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Multi-room CI
