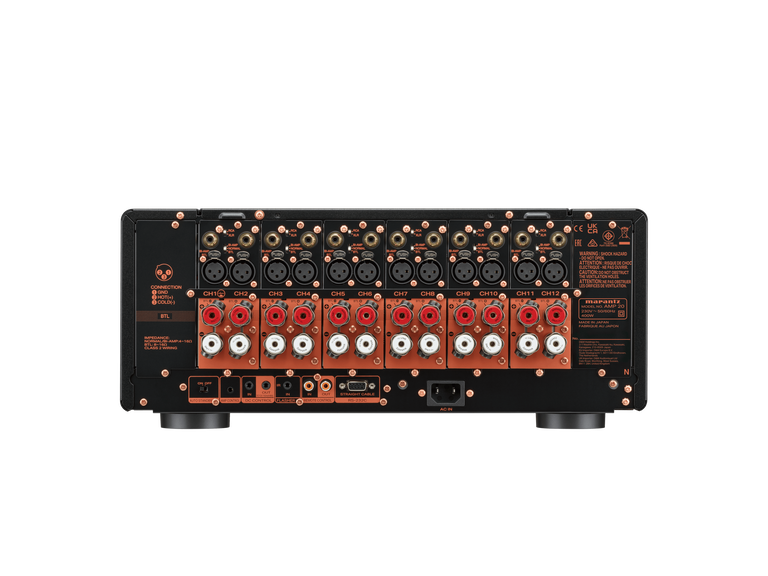

Marantz AMP 20

Reference 12 Channel Amplifier with 200W and Exclusive HDAM

AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.

Crafted in Shirakawa, Japan
12 Channels
200 Watts per Channel
Exclusive HDAM
Custom Switching Amplifiers
Selectable Output Modes

Select Quality

Color

Black

Black

Find a Retailer

Marantz AMP 20

Marantz AMP 20

AMP 20

Details & Specifications

Inputs Outputs

Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 12
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chassis Copper Plated

Multi-Room CI

RS232 Control Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1

Specifications

Number of poweramps 12
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W

General

Front Display Level Meter
Auto Power Off Yes
Metal Front Panel Yes
Power Consumption 400W
Power Consumption, No-Sound 110W
Standby Consumption 0.2W
Maximum Dimensions (W × D × H) 17.4 × 17.4 × 7.5 in.
Weight 39.7 lbs
What's in the box Main unit, quick start guide,
AC cord,Amp control cable,
Remote control cable,
SP terminal wrench
UPC code 747192143930
