Marantz AMP 10

Reference 16 Channel Amplifier with Dolby Atmos, 200W and Custom HDAM

Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.

Crafted in Shirakawa, Japan
16 Channels
200 Watts per Channel
Custom HDAM
Custom Switching Amplifiers
Selectable Output Modes

Select Quality

Color

Black

Find a Retailer

Marantz AMP 10

AMP 10

Details & Specifications

Multi-Room CI

IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1

Others

Front Display Level Meter
Firmware Update by Network / USB / RS232C No / No / No
Auto Power off Yes

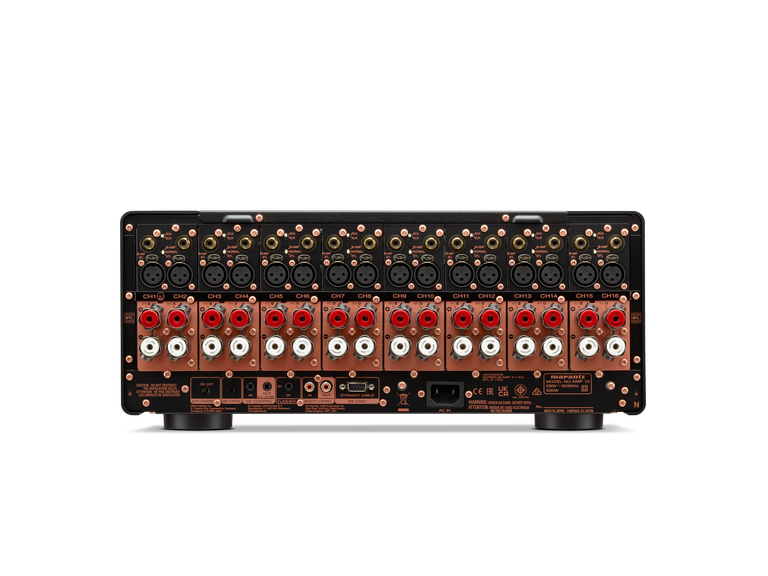

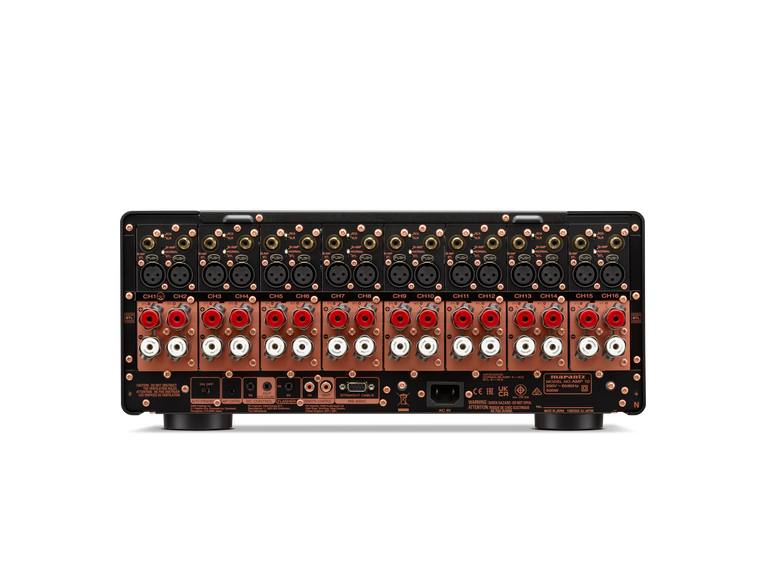

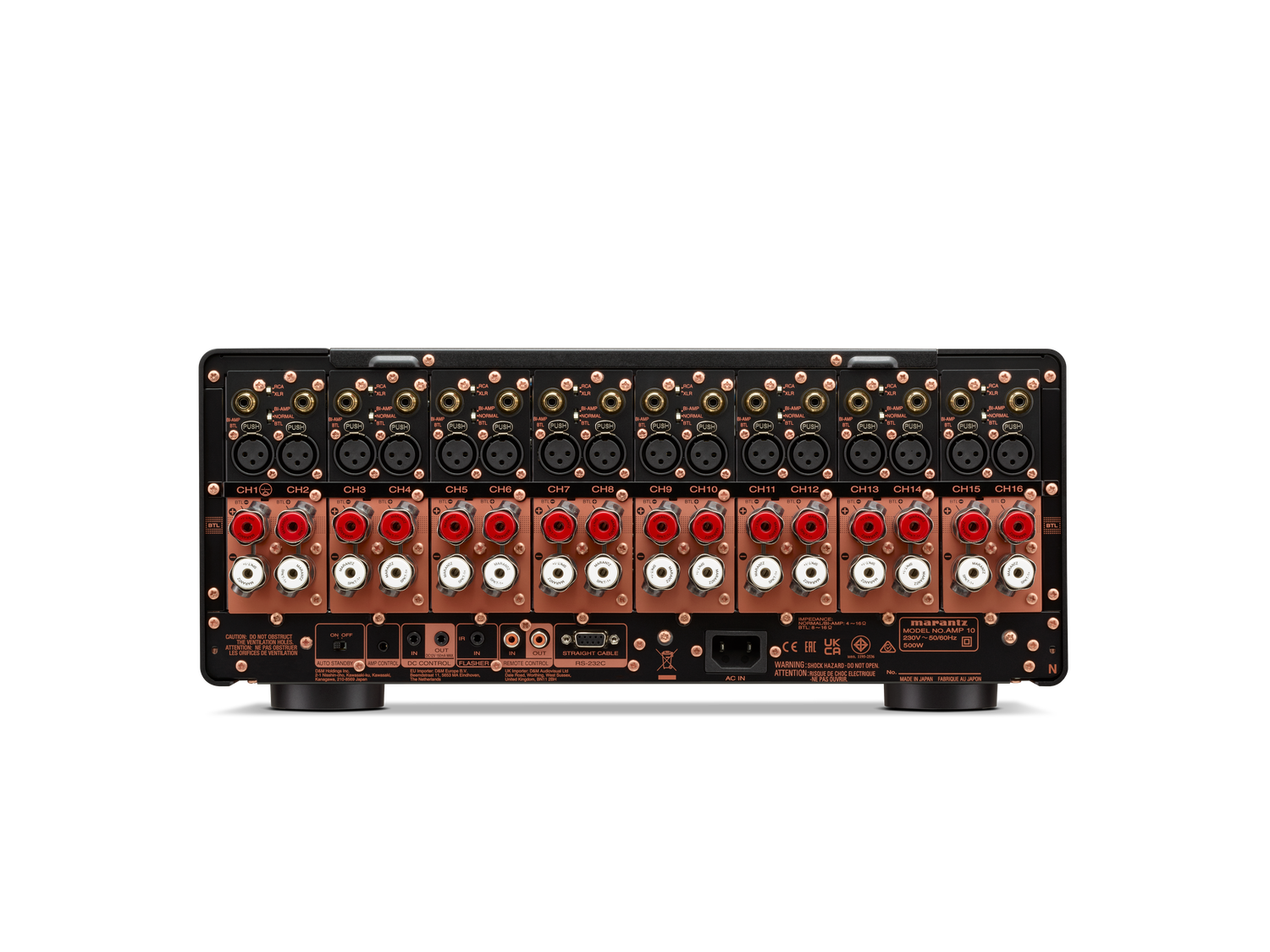

Inputs Outputs

Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 16
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chasiss Copper Plated

Specifications

Number of poweramps 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
70% Guarantee(Normal/Bi-Amp/BTL) Yes
100% Guarantee(Normal/Bi-Amp) Yes

General

Metal Front Panel Yes
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound (ECO on/off) in W No / 140W
Standby Consumption in W 0.2
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm No x No x No
( No x No x No )
【 17.4 x 19.2 x 7.4 】
Weight in lbs. 43.7
What's in the box Main unit, quick start guide, AC cord,
Amp control cable, Remote control cable,
SP terminal wrench
UPC code 747192137519
