Marantz PM6007

Slimline Integrated Stereo Amplifier with 45W

The PM6007 delivers a realistic listening experience and Marantz rich and spacious signature sound. With cutting-edge technologies, it is an ideal choice for those ready to elevate their 2-channel Hi-Fi system.

Artisinal Design
2.2 Channels
45 Watts Per Channel

Select Quality

Color

Black Silver-Gold

Black

Find a Retailer

Marantz PM6007

Key Technologies

Stream high-resolution audio from Qobuz for rich, detailed sound.

Stream high-resolution audio from Qobuz for rich, detailed sound.

PM6007

Details & Specifications

Features

Channels 2
Current Feedback Topology Yes
Full balanced circuitry architecture No
Double Mono Power Amp construction No
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium Yes / No / No
Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / No
Sample Rate digital In 192 kHz / 24-bit
USB-A: DSD / WAV / FLAC / AIFF / ALAC No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
USB-B PCM sample rate No
Asynchronous mode rear USB No
Bit-perfect transmission No
Ground isolator for DAC Mode operation No
Tuner: DAB / DAB+ / FM (RDS) No
Bluetooth / aptX / NFC No
Streaming audio from PC No
Wi-Fi / Wired LAN No
Internet radio No
AirPlay 2 No
Roon Tested No
Spotify Connect* / Tidal* / Deezer* / others * No
Amazon Prime Music* / Pandora* No
HEOS Multiroom and Streaming No
Voice Control - Works with Amazon Alexa No
Voice Control - Google Assist / Apple Siri No
Voice Control - Microphone built-in No
DSD-Audio network streaming No
Lossy formats: MP3 / WMA / AAC No
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF No
Gapless Playback No
Remote APP: iDevice / Android No
Analog Mode No
HDAM version SA3, SA2
Power Transformer: Toroidal / El Yes / No
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout No
Aluminium extrusion heat sink Yes
Copper Plated Chassis No
Tri Tone Control (Bass / Mid / Treble) No
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

Others

Marantz Musical Digital Filtering Yes
Linear Drive Power Supply Yes
Liniear volume control Yes
BI-AMP and Multichannel option No
Shottky diodes Yes
Input buffer amp (all inputs / CD only) No / No
System block shielding: Copper / metal / none No / No / Yes
Double Layer Bottom Plate No
Low Noise OELD display No
Low noise LCD display No
Source Direct Yes
Power Amp direct No
5mm aluminium top plate No

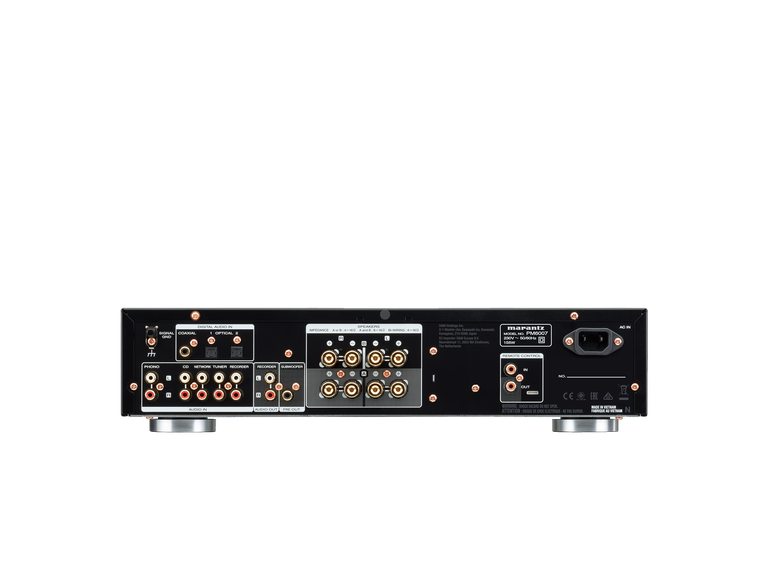

Inputs Outputs

Audio Inputs 5
Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / No
Phono Input: MM / MC Yes / No
Audio Outputs 1
Balanced In / Out No / No
Pre-out / Main-in subwoofer / No
Power Amp Direct IN No
HDMI: inputs / outputs No
Gold Plated Cinch Yes
Speaker A / B Yes
Speaker Terminals Metal (Gold) Screw
Number of terminals 4
D-Bus Yes
Floating Control Bus (3.5 mm mono jack x 2) No
Headphone Out Yes
Headphone Gain Control (low / mid / high) No

Specifications

Power Output (8 / 4 Ohm RMS) 45 W / 60 W
Frequency response 10 Hz - 70 kHz
Total Harmonic Distortion 0.08%
Damping Factor 100
Input Sensitivity: MM 2.2 mV / 47 kOhm
Input Sensitivity: MC No
Signal to Noise Ratio: MM/MC 83 dB / No
Input Sensitivity: High level 200 mV / 20 kOhm
Input Sensitivity: Balanced High level No
Signal to Noise Ratio: High level 102dB(2V input)
Input Sensitivity: Power Amp Direct IN No
Signal to Noise Ratio: Power Amp Direct IN No

General

Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
Metal Front Panel Yes
Power Consumption in W 155
Standby Consumption in W 0.3
Auto Power off Yes
Detachable Power Cable Yes
Remote Control RC004MCD
System Remote Function Yes
Maximum Dimensions (W x D x H) in mm 440 x 370 x 105
Weight in kg 7.6
Carton Maximum Dimensions (W x D x H) in mm 517 x 189 x 468
Carton Weight (inc. product) in kg 9.7
