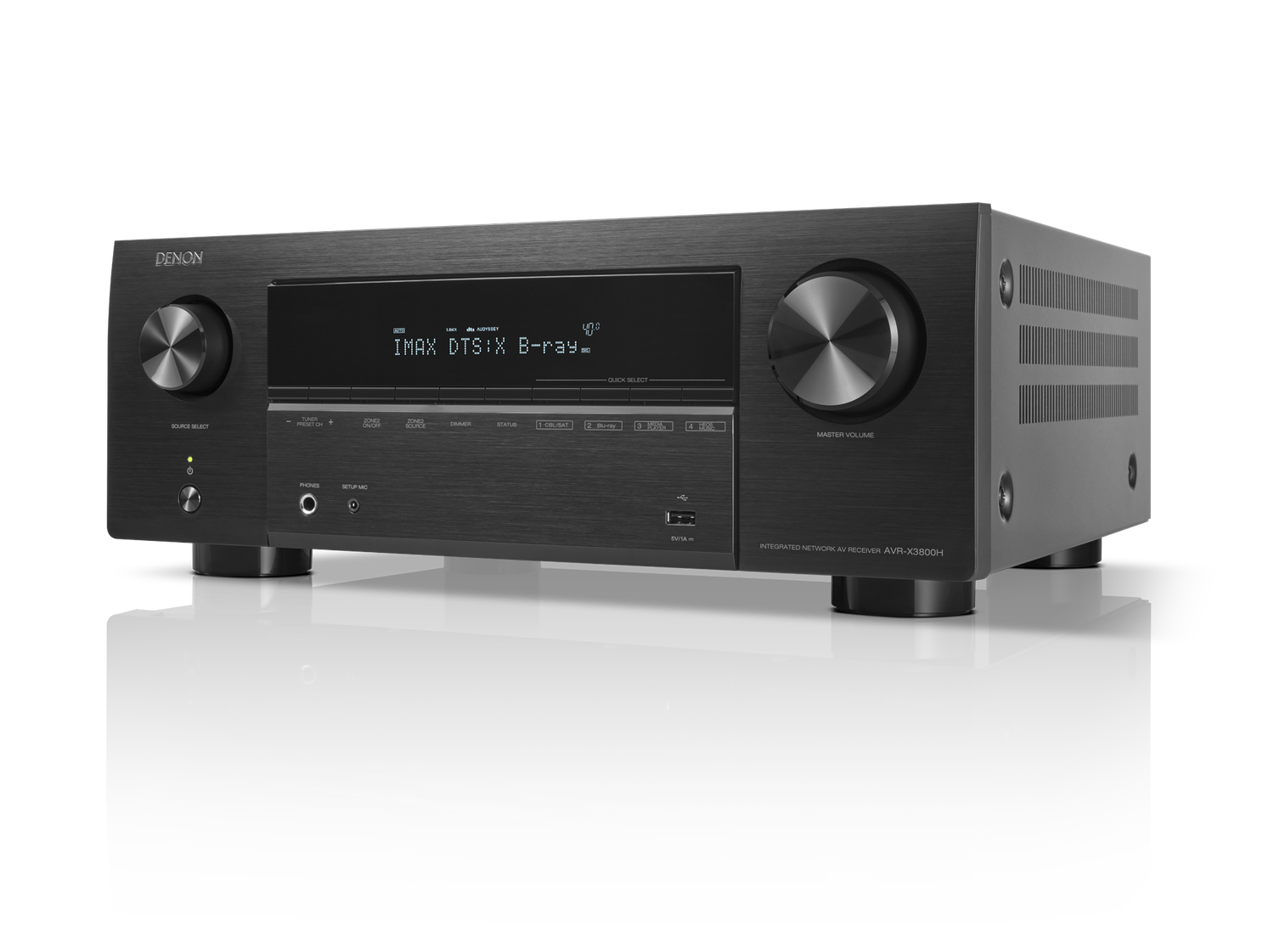

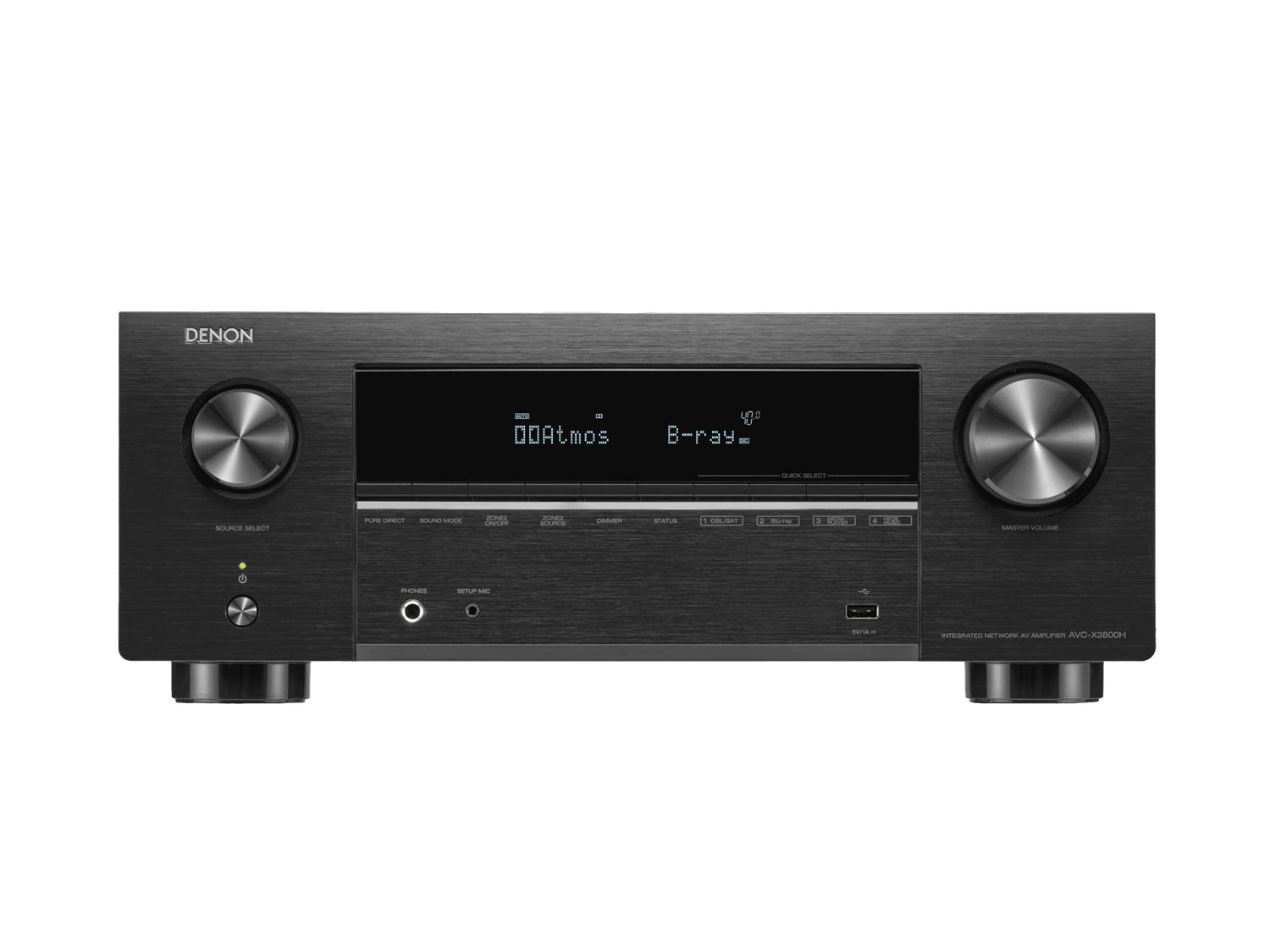

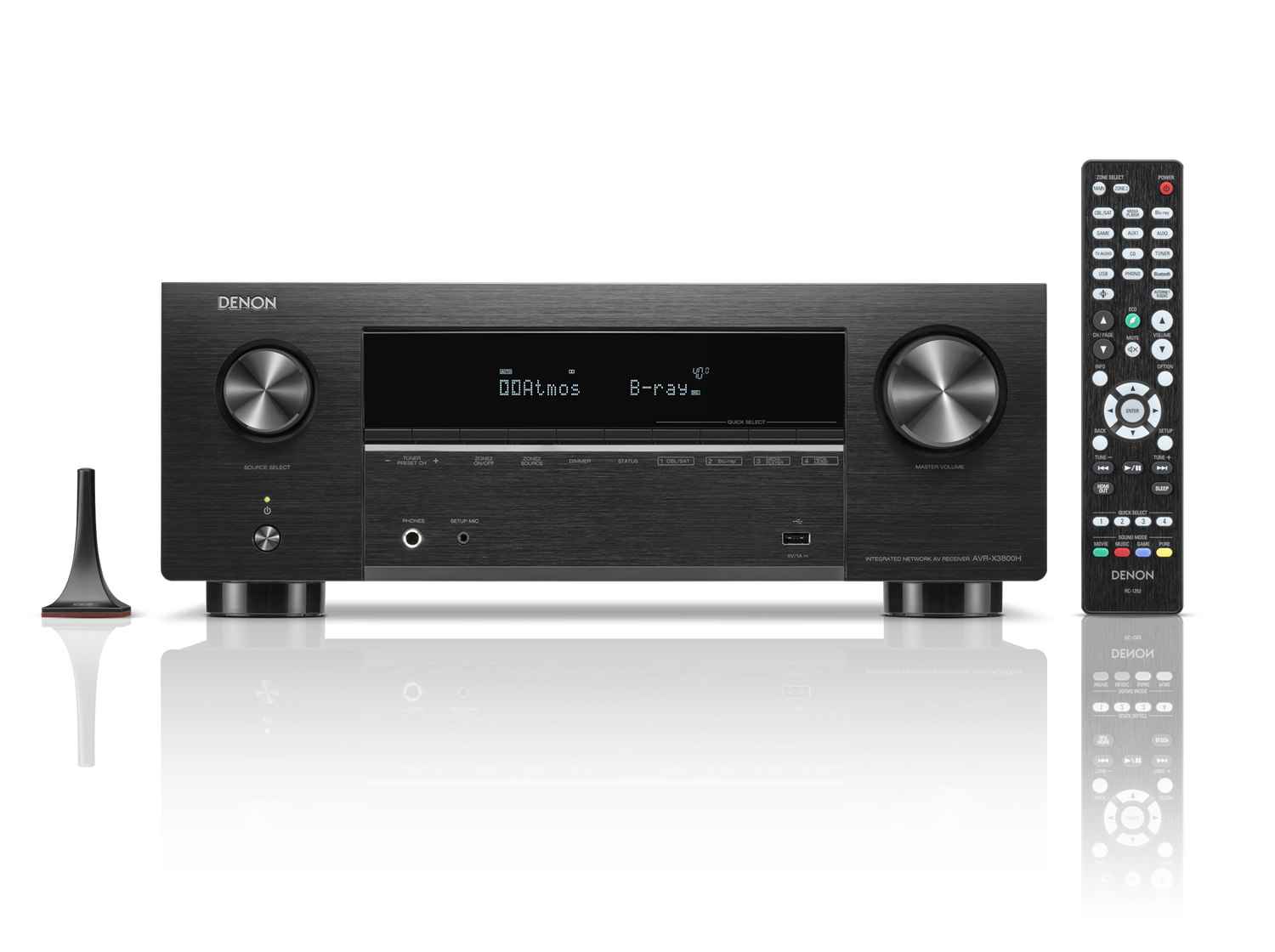

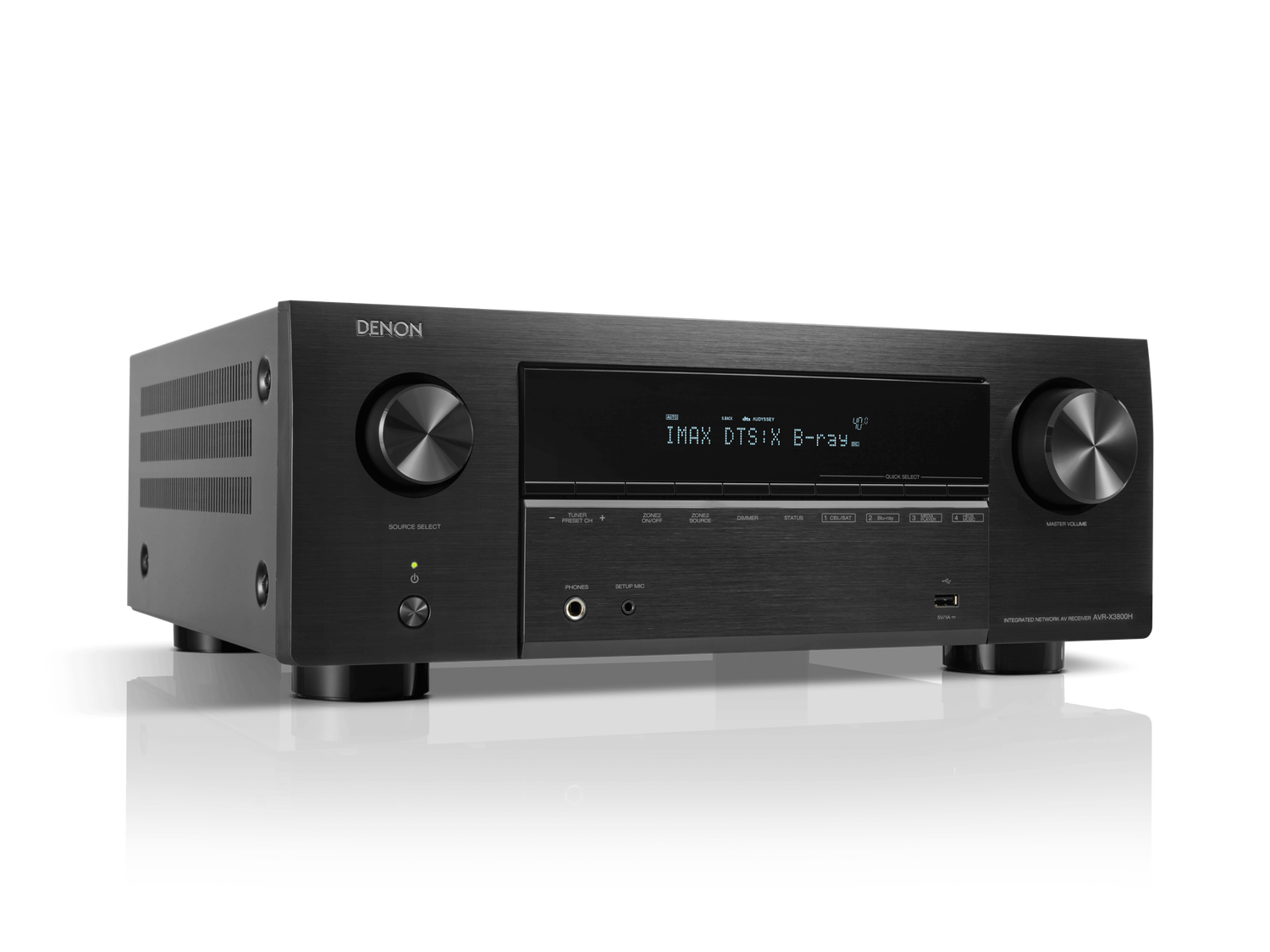

AVC-X3800H

9.4-kanaals 105W 8K Dolby Atmos AV-receiver Powered by HEOS™

Met negen versterkingskanalen, tot vier onafhankelijke subwoofers, Dolby Atmos en DTS:X, plus IMAX Enhanced, Auro 3D en ondersteuning voor 8K-video, dompelt de AVC-X3800H grotere woonruimtes onder in geluid van bioscoopkwaliteit. Powered by HEOS™ voor streaming door het hele huis.

9.4 kanalen
105 watt per kanaal
8K Ultra HD
3D-audio
Powered by HEOS™
Klaar voor Dirac Live

Selecteer Kwaliteit

Kleur

Zwart

AVC-X3800H

Gegevens en specificaties

AVC-X3800H
Handleiding

Meerkanaals/Surround

DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
DTS Neo:X, DTS Neural:X No, Yes
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Auro 3D Yes
360 Reality Audio / MPEG H Yes, Yes
Meerkanaalsstereo Yes
Max. Number of Processing (Pre-Amp) Channels 11.4

Geluidsverbeteringen

Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Audyssey LFC Yes
Dirac Live Upgradability Yes
Gecomprimeerde Audio Restorer Yes

Netwerk

Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Roon Tested Yes
HEOS App Control Yes
Compatibel met Remote APP voor smartphones Denon 2016 AVR Remote
Ethernet Poorten Yes
Wi-Fi Yes
Bluetooth Yes

HDMI Inputs: Back, Front 6, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate, Quick Frame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
DSD Audio Capability Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes
Auto LipSync Yes

Multiroom C\I

Multiroom zones 2
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
Zone HDMI uitgang via HDMI Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote In / Uit Yes, Yes
DC-triggers 1
HDMI Diagnostics Yes

Overige

Automatische luidsprekerconfiguratie via microfoon Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display 1-Line FLD
GUI -talen 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Geoptimaliseerde Bass Reductie Yes
Bass Sync Yes
ECO Mode Yes
Automatisch Uitschakelen Yes
Sluimertimer Yes

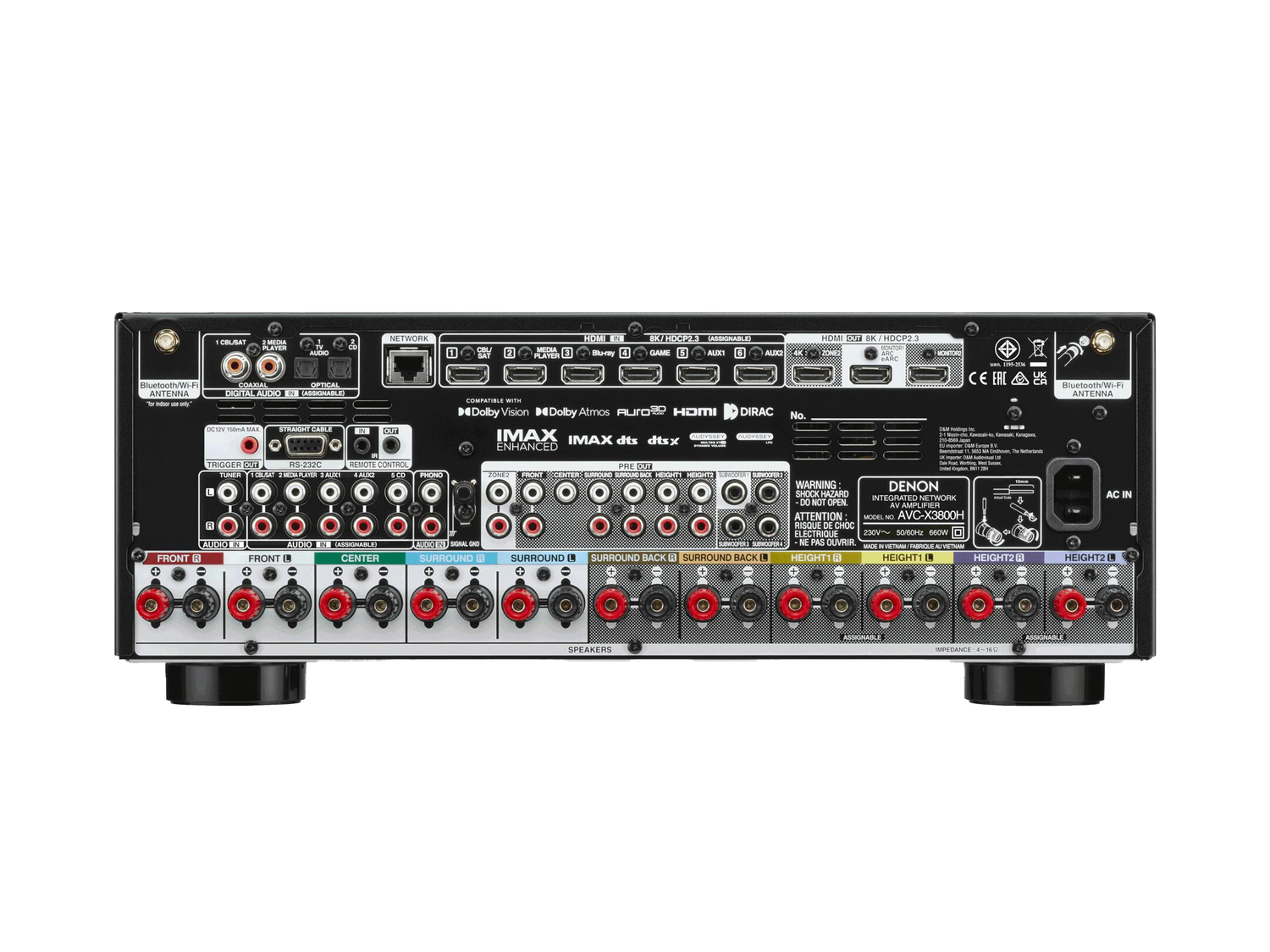

Ingangen/uitgangen

HDMI In, Out 6, 3
Multi-Room Video Out: Video, HDMI No, Yes
Analog In, Out 6 / No
Phono (MM) In Yes
Digital In: Optical, Coaxial 2 / 2
Multi-Room Out: Analog, Digital 1 / No
Meerkanaals Pre Out Yes (11.4)
Subwoofer uit 4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Aantal luidspreker aansluitingen 11
Luidspreker A / B Assignable
Bi-amp Drive Assignable
Multi-room luidsprekeraansluiting Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner No

Specificaties

Aantal eindversterkers 9
Uitgangsvermogen (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 105W
Uitgangsvermogen (6 ohm, 1 kHz, 0.7% 2ch Drive) 135W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 180W

Algemeen

Afstandsbediening systeem RC-1253
Pre-Programmed, Learnable, LCD Display No, No, No
Energieverbruik in W 660W
Energieverbruik geen audio (ECO an/off) in W 60W/100W
Verbruik tijdens stand-by in W 0.1
Verbruik CEC in stand-by 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】 434 x 389 x 167
( 434 x 389 x 236 )
【 434 x 379x 167 】
Gewicht in kg 12.5
Gewicht karton (incl. product) in kg 15.1
