PMA-1700NE

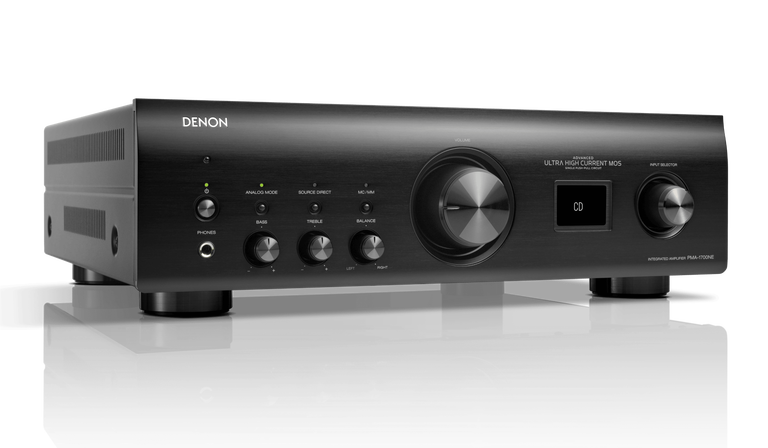

Denon PMA 1700NE geïntegreerde versterker met een USB-DAC

€ 1.799,00

De Denon PMA-1700NE geïntegreerde versterker is voorzien van UHC Single-Push-Pull-versterkerschakeling, Advanced AL32 Processing Plus en een MM/MC-phono-equalizer. Hierdoor biedt hij een uitstekende geluidskwaliteit met nauwkeurige details.

Stereoversterker
70W per channel (8 ohms)
AL32 Processing
USB-DAC
Nauwkeurige elektrische controle
MM/MC phono

Selecteren Quality

Color

Black Silver

Aantal

Beschikbaarheid:

Op voorraad

€ 1.799,00

Zoek een verkooppunt

PMA-1700NE

€ 1.799,00

Vergelijk Denon versterkers

Huidig model

PMA-1700NE

Denon PMA 1700NE geïntegreerde versterker met een USB-DAC

€ 1.799,00

Stereoversterker

70W per channel (8 ohms)

AL32 Processing

Uitverkocht

PMA-A110

Geïntegreerde versterker ter ere van het 110-jarig jubileum

€ 3.999,00

Stereoversterker

80W per channel (8 ohms)

AL32 Processing

PMA-1600NE

Hoogwaardige geïntegreerde versterker met 2x 140 W en DAC-modus

€ 1.799,00

Stereoversterker

70W per channel (8 ohms)

AL32 Processing

PMA-1700NE

Gegevens en specificaties

General

Unit (W x D x H) 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H) 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Nettogewicht 17.6kg
38.8lb
Packaging Dimensions (W x D x H) 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Brutogewicht verpakking 20.4kg
45lb
Carton Color 2 Color
Cushion / Packing 4 Separate / Sheet
Panel Color SP / BK
Voorpaneel (midden) Aluminum
Side cover SECC with 4 straight emboss
Side screw SP: Nickel / BK: Black
Rear Panel SECC t1.0mm
Chassis Material SECC t1.2mm
Bottom Layer Single
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ Phono Sel knobs Aluminum
Aan/uit knop Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
Foot ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier Extruded Aluminum

Specifications

Rated Output Power 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequentierespons 5Hz - 100kHz (0~ -3dB)
Totale harmonische vervorming 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signaal-ruisverhouding PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)

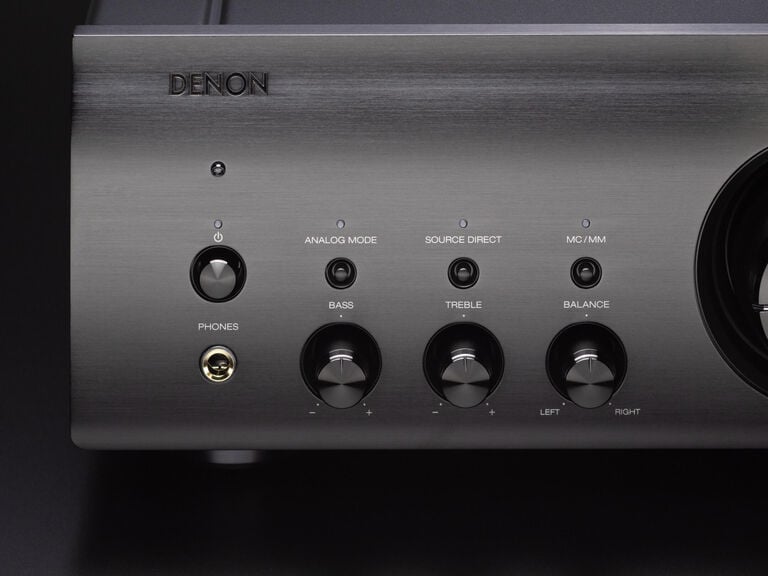

Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off
0.4W TV autoplay on

null

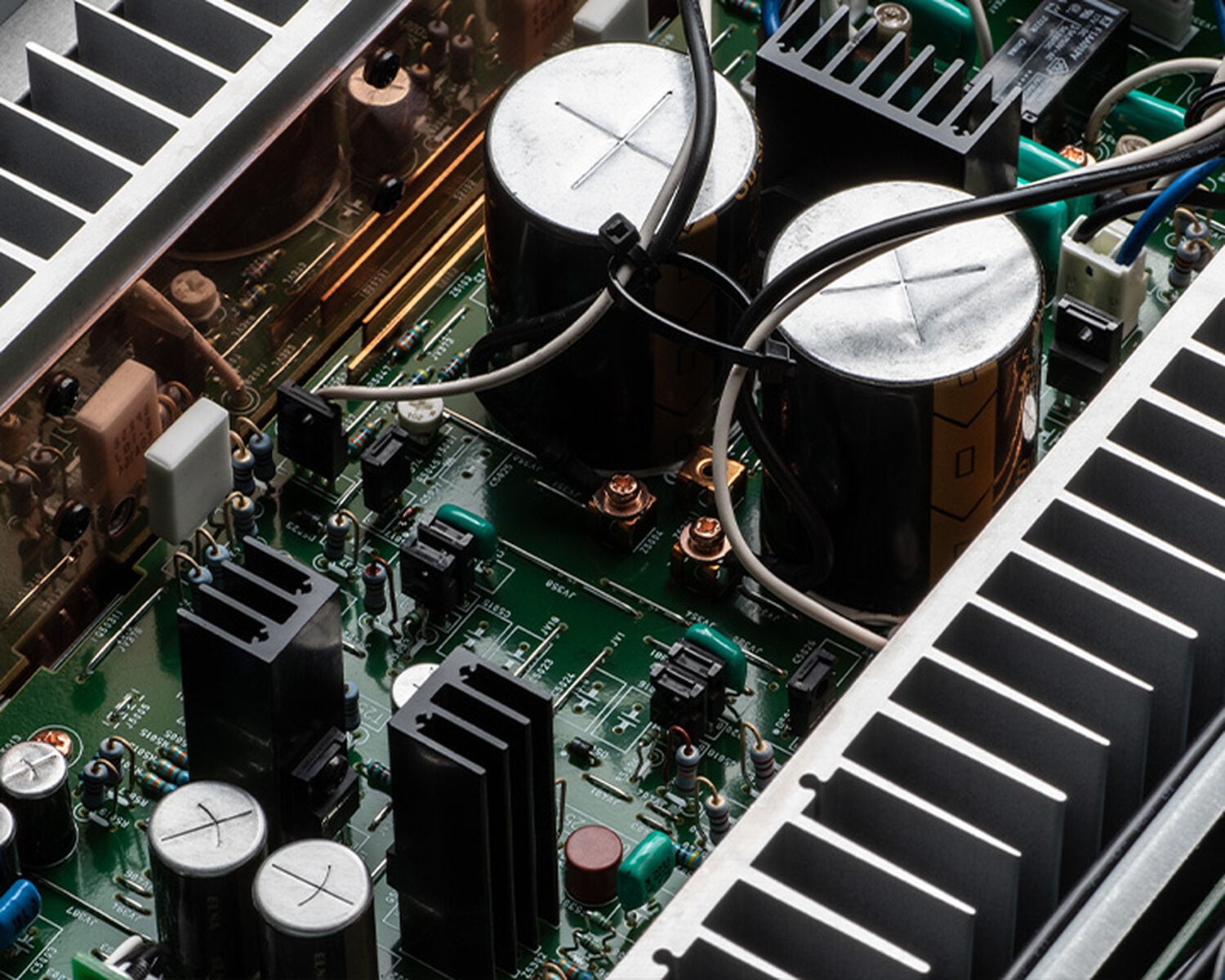

Audio Feature

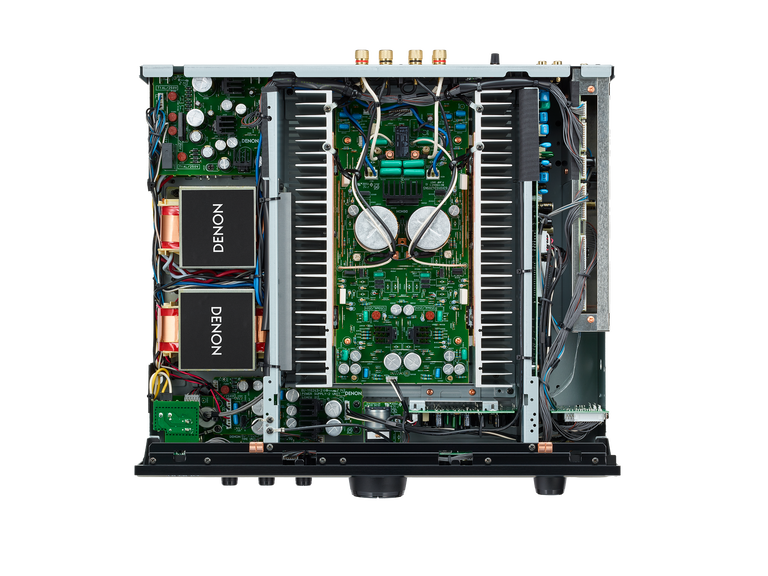

Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
(OP AMP)

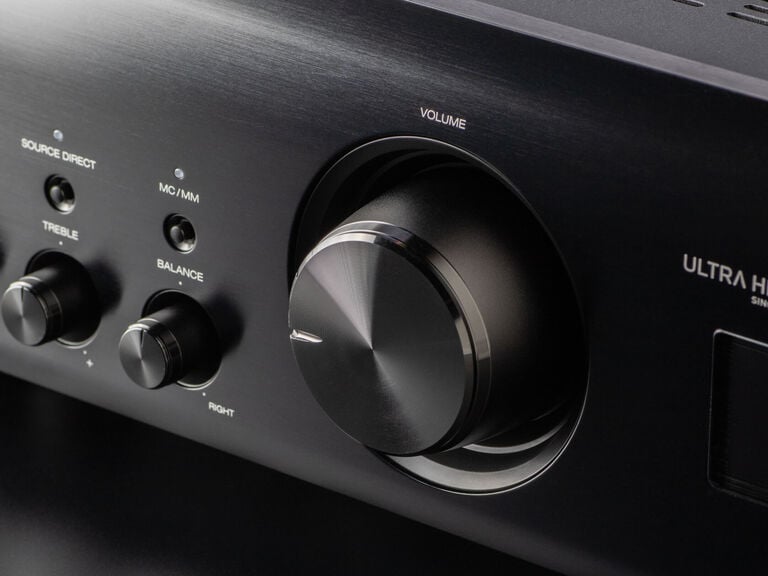

Volume Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Type of Tone Control Electric
Controlled by Potentiometer
Headphone Circuit Use Poweramplifier
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
Other 70
DAC Circuit PCM1795
Digital Filter Fixed
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation

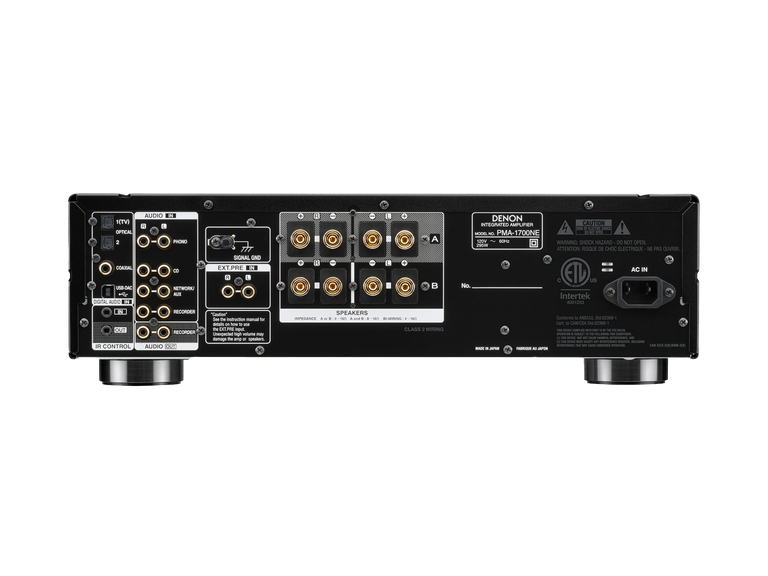

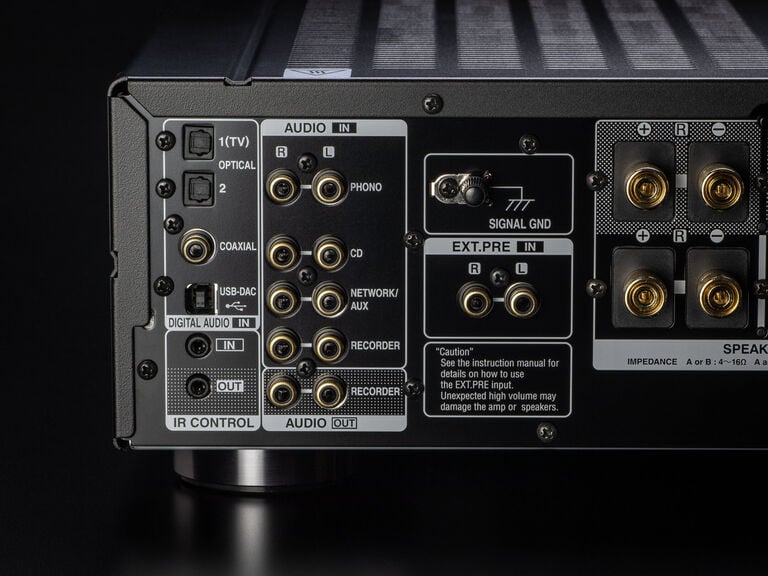

Connectivity

Phono Input Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)

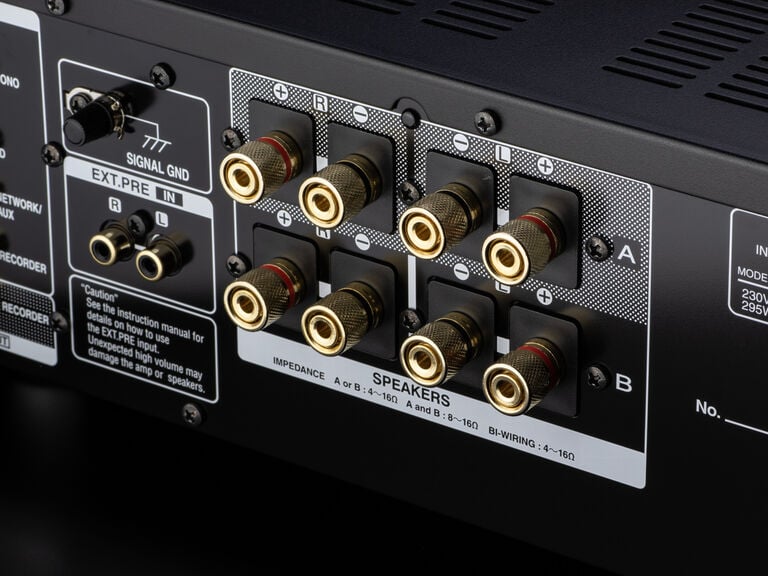

2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
AC Inlet Yes
Wi-Fi No
HEOS No
USB B (USB DAC) 1 (Rear)
Module or Main Device New XMOS
(XU210-256-TQ128 )
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certificaton Yes(Roon Tested)
TBD

Control

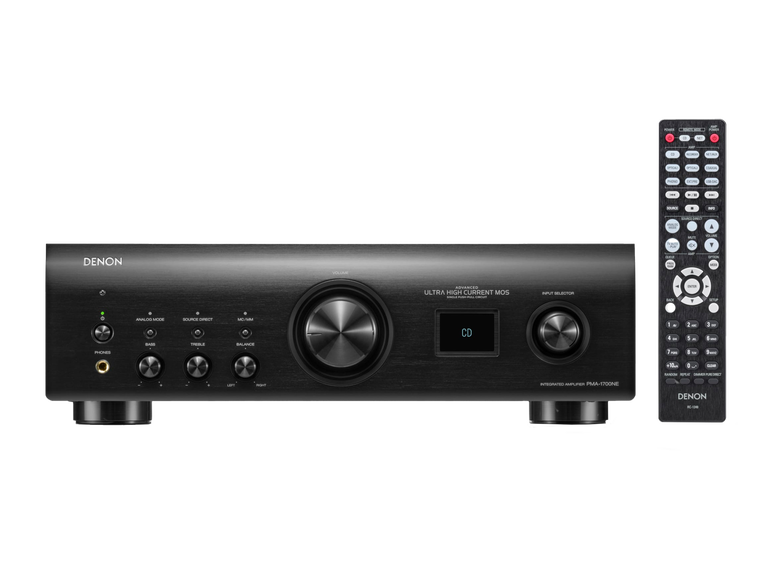

Remote Controller System Remote
(w/CD Player Control)
Unit control (Button) Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC

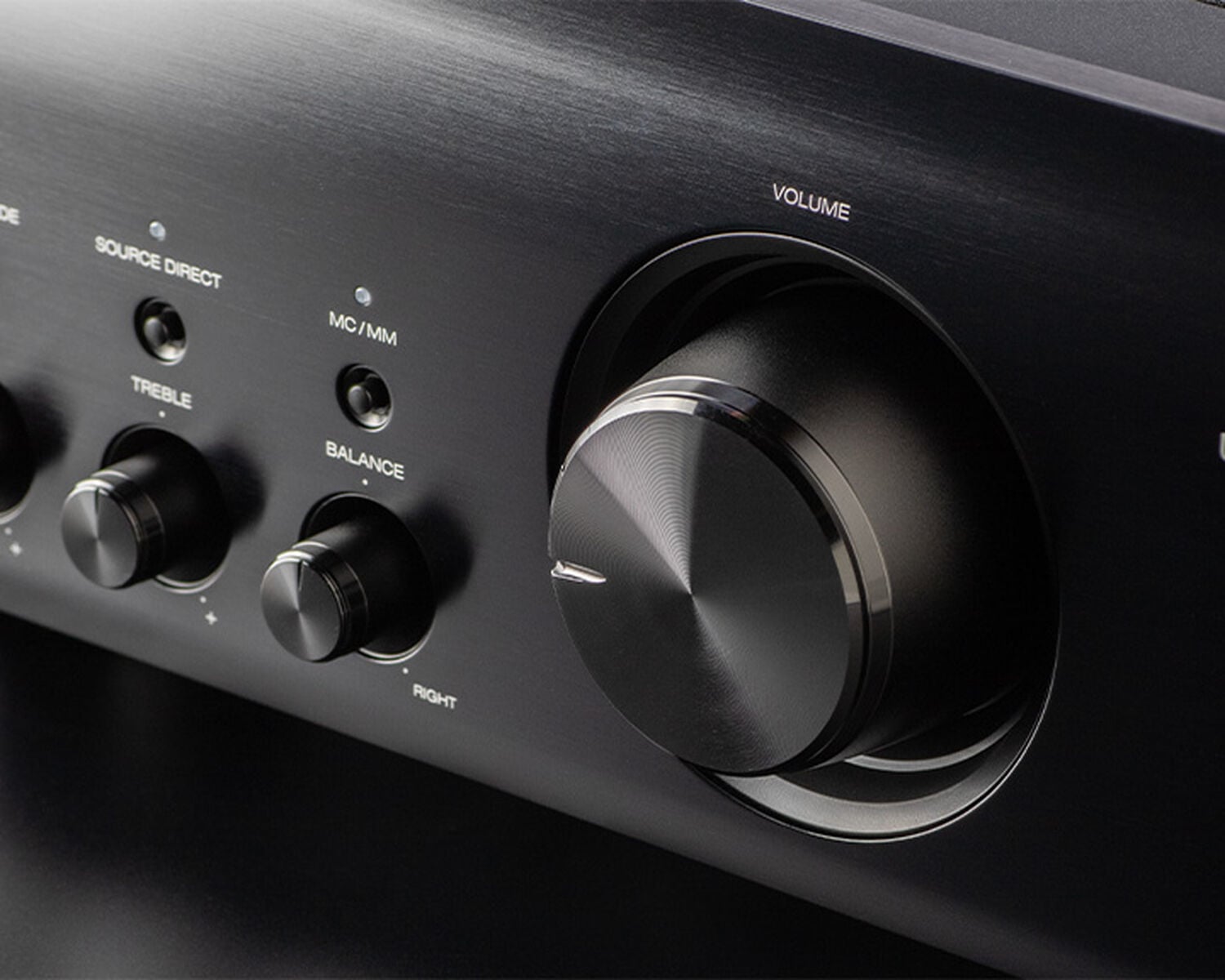

Unit control (Knob) 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language Alphabetical
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes
TV Auto-play (Opt/Coax digital-in detecter) Yes
Last Function Memory Yes
Auto Standby Mode Yes
Owner's Manual Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller Yes
Battery Yes (AAA x2)
Power Cord Yes
