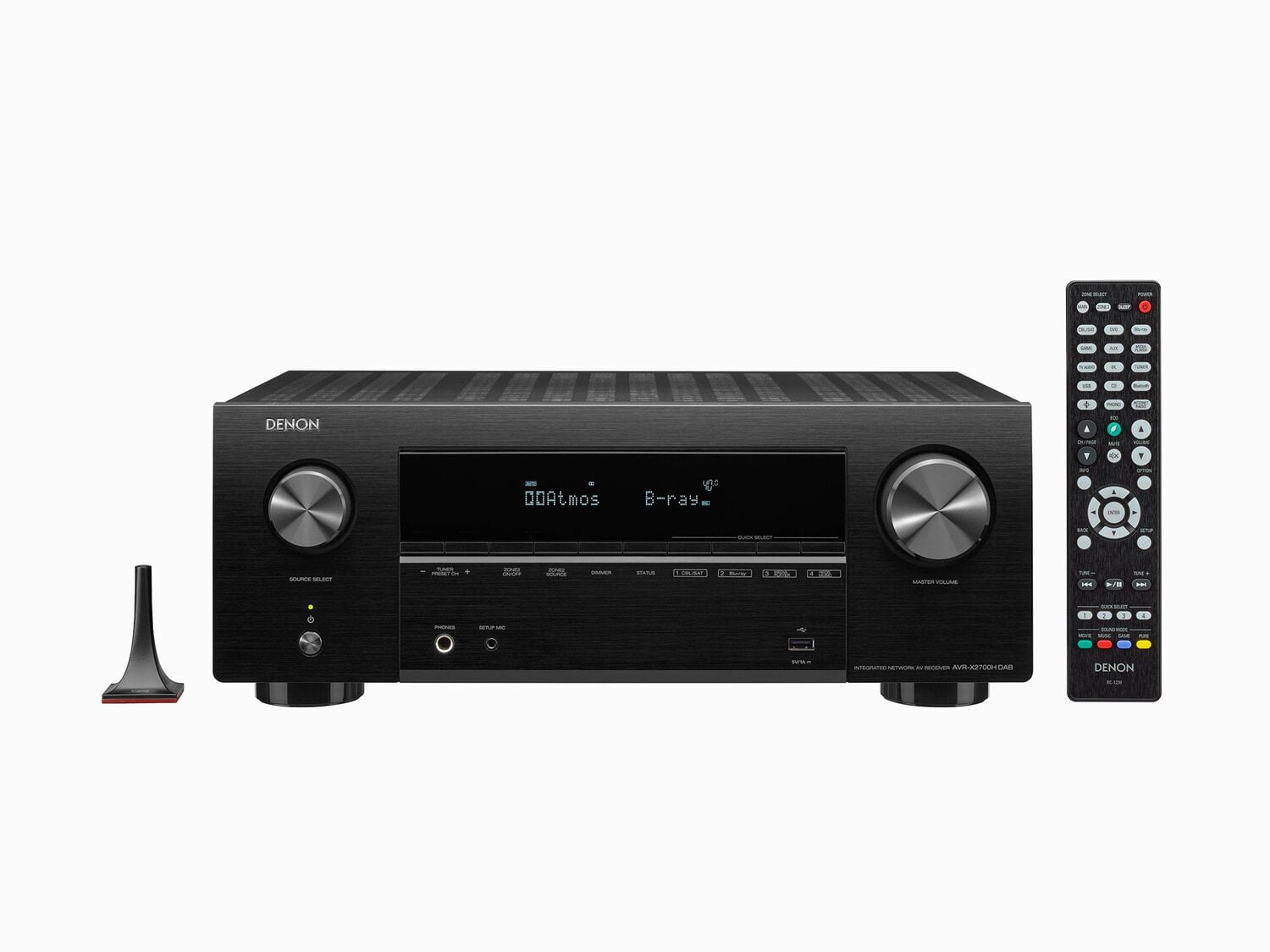

AVR-X2700H DAB

7.2 Ch. 150W 8K AV Receiver with HEOS® Built-in and DAB+

Denon AVR-X2700H DAB 7.2ch 8K AV receiver with 150W per channel fully supports 3D audio formats as well as the latest HDMI specifications such as 8K/60Hz, 4K/120Hz pass-through and upscaling, HDR10+, Dynamic HDR, ALLM and more.

7.2 channels
150 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
6 HDMI inputs

Select Quality

Colour

Black

AVR-X2700H DAB

Details & Specifications

Owner’s Manual

Multichannel Surround

DTS HD Master / DTS:X Yes / Yes
DTS:X Pro No
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos Yes / Yes
Dolby ProLogic II / Dolby Surround No / Yes
Dolby Height Virtualization Yes
Front Wide Speakers: Dolby / DTS No
Auro 3D No
IMAX Enhanced No
MPEG-H No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 7.1

Sound Enhancements

Mono Block Power Amp Construction No
Discrete Power Amplifier 7
110th Anniversary Audio Tuning No
Iron diecast feet No
Copper plated transformer base No
Premium speaker terminals No
All black interior No
D.D.S.C. HD Digital No
Pure Direct Yes
High Grade Audio Components Yes
Gold Plated RCA Terminals No
Clock Jitter Reducer No
Alpha Processing No
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC No
Audyssey APP Support Yes
Speaker Setup Presets 2
Compressed Audio Restorer Yes

Network

HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
DSD Audio Streaming up to DSD5.6
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay 2 Yes
Roon Tested Yes
Internet Radio TuneIn
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora* Yes / Yes
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Headphone transmission Yes

HDMI Inputs: Back / Front 6 / 0
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / No
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120**
Video Conversion Analog -> HDMI No
HDMI to HDMI Scaling up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes
HDMI pass-though in standby mode Yes
DSD Audio Capability No

Multi-room CI

HEOS Multiroom integrated Yes
TV Sound grouping Yes
Multi-Room Zones 2
Main room multichanel audio - Zone stereo downmix Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source No
Webbrowser Setup Yes
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Remote In / Out No / No
DC Trigger Output No

Others

Voice Control - Works with Amazon Alexa Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Voice Control - Microphone built-in No
Auto Speaker Setup by Microphone Audyssey MultEQ XT
FL Display 1 line
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 9
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync No
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

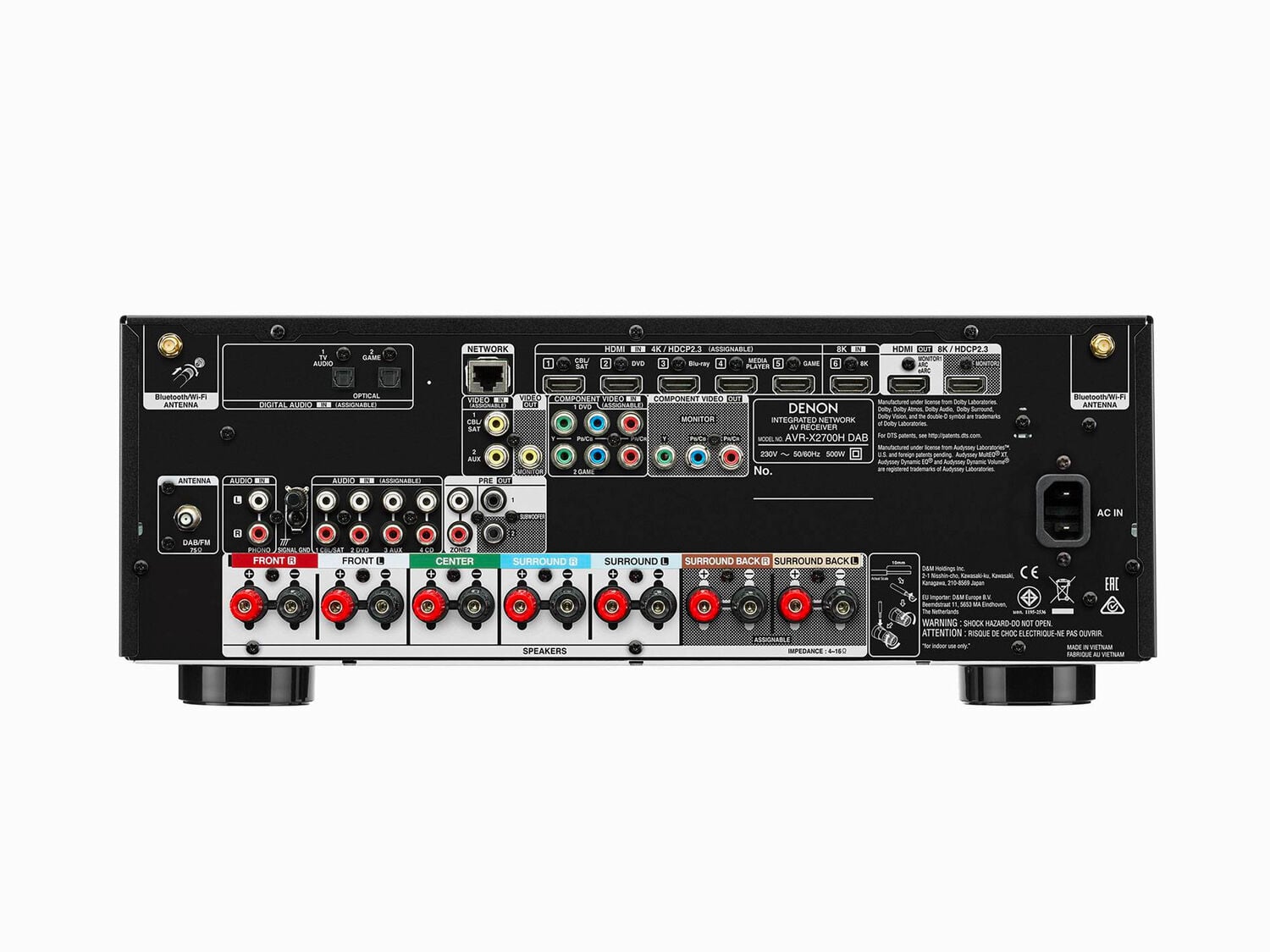

Inputs Outputs

Composite In / Out 2 / 1
Component In / Out 2 / 1
HDMI In / Out 6 / 2
Multi-room Video Out: Video / HDMI No / No
Analogue In/out 4 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 0
Multi-room Out: Analog / Digital 1 / No
Multichannel Preout Yes (0.2)
Subwoofer Out 2
7.1 Multichannel Input No
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Speaker A / B assignable
Bi-amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay
DAB / DAB+ tuner No
FM Tuner with RDS Yes

Specifications

Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 95 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) No
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 150 W

General

Available colours: Black / Premium Silver Yes / No
Metal Front Panel No
System Remote Control RC-1239
Pre-programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound (ECO On / Off) in W 35 W / 75 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 3.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm
Antenna: Vertical: (W x D x H) in mm
W/O Antenna: (W x D x H) in mm 434 x 341 x 167
( 434 x 341 x 237 )
【 434 x 330 x 167 】
Weight in kg 9.5
Carton Maximum Dimensions (W x D x H) in mm 520 x 429 x 243
Carton Weight (inc. product) in kg 11.5
