停产型号

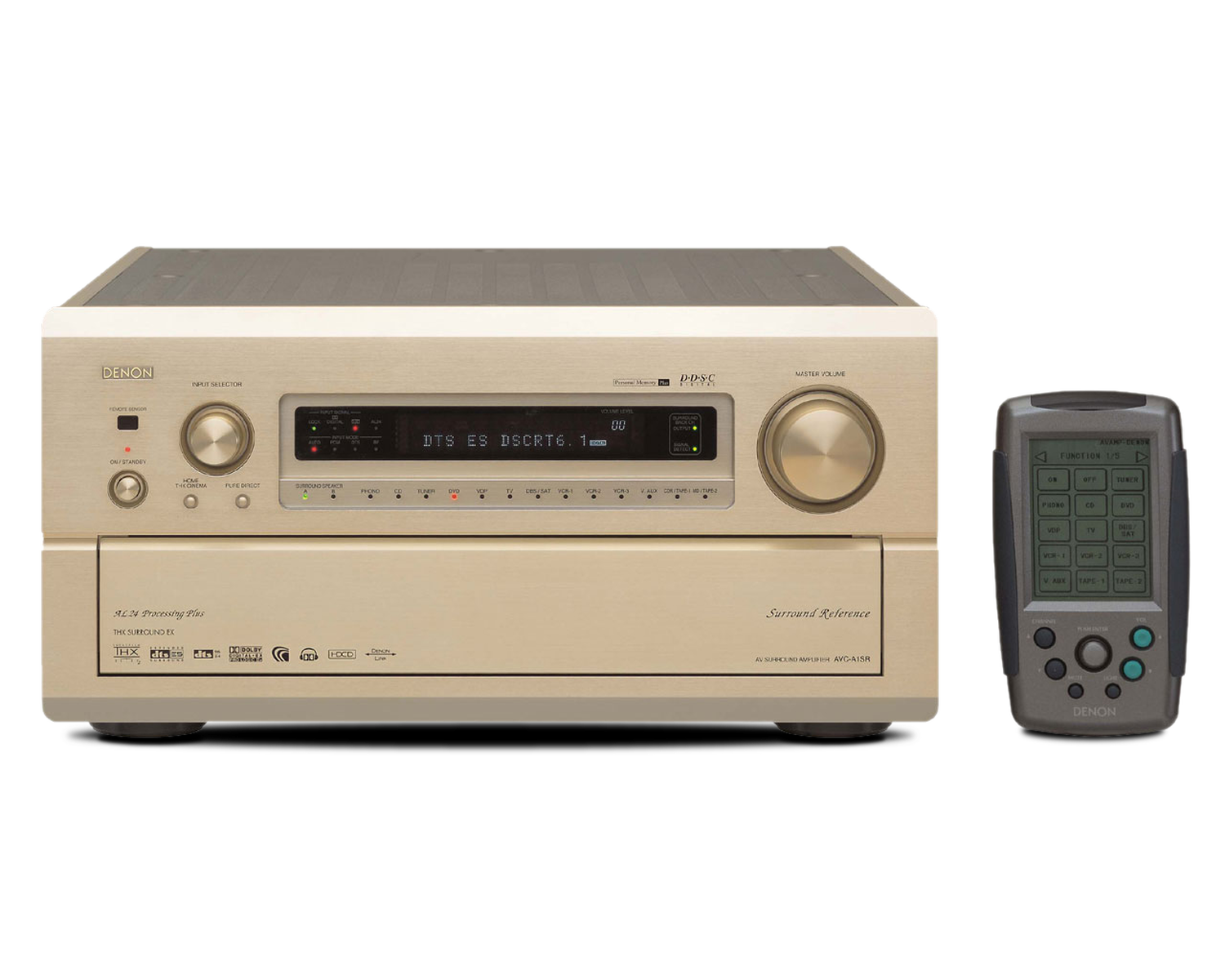

AVC-A1SRA

AV Receiver

The Denon AVC-A1SRA is a 7.1-channel AV receiver designed for superior audio and video performance. Offering support for Dolby Atmos, DTS:X, and Auro-3D, it creates a truly immersive 3D sound experience, enveloping you in lifelike audio. The receiver also features advanced room calibration via Audyssey MultEQ XT32 and Audyssey Dynamic Volume, ensuring optimal sound quality for any room.

15.4 channels
210 watts per channel
8K Ultra HD
3D Audio
HEOS Built-in
7 HDMI inputs

Select Quality

AVC-A1SRA

详细信息和规格

Multichannel Surround

DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, Yes
DTS Neo:X, DTS Neural:X No, Yes (15ch)
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Auro 3D Yes
360 Reality Audio / MPEG H Yes, Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 15.4

Sound Enhancements

Mono Block Power Amp Construction Yes (L/R separated)
Discrete Power Amplifier Yes
D.D.S.C. HD Digital Yes (32 bit)
Pure Direct Yes
Gold-Plated RCA Terminals Yes
Clock Jitter Reducer Yes
Alpha Processing AL32 Processing Multichannel
Audyssey MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Audyssey LFC Yes
Dirac Live Upgradability Yes
Compressed Audio Restorer Yes

Network

Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Pandora Yes
SiriusXM* Yes
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI Inputs: Back, Front 7, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 2, 1
HDMI In, Out 7, 3
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate, Quick Frame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
DSD Audio Capability Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes
Auto LipSync Yes

Multi-room / CI

Multi-Room Zones 3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analogue Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
Zone HDMI Output from HDMI Source Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote In / Out Yes, Yes
DC Trigger Output 2
HDMI Diagnostics Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display 2-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

Inputs Outputs

VIDEO
Multi-Room Video Out: Video, HDMI No, Yes
AUDIO
Analogue In, Out 5 (1x XLR), No
Phono (MM) In Yes
Digital In: Optical, Coaxial 2, 2
Multi-Room Out: Analogue, Digital 2, No
Multichannel Pre-Out Yes (17.4)
Subwoofer Out 4 (independent)
OTHER
Speaker Terminal: Gold-Plated Screw, Regular Screw Yes, No
Number of Speaker Terminals 17
Speaker A / B Assignable
Bi-amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes

Specifications

Number of Power Amps 15
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) No
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 150W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 190W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 210W

General

Metal Front Panel Yes
System Remote Control RC-1250
Pre-Programmed, Learnable, LCD Display No, No, No
Power Consumption in W 1100
Power Consumption No-Sound (ECO On / Off) in W 80 W / 160 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm
Antenna: Vertical: (W x D x H) in mm
w/o Antenna: (W x D x H) in mm 434 x 498 X 195
(434 x 498 X 259)
【 434 x 493 x 195 】
Weight in kg 32.0
Carton Weight (inc. product) in kg 38.0
